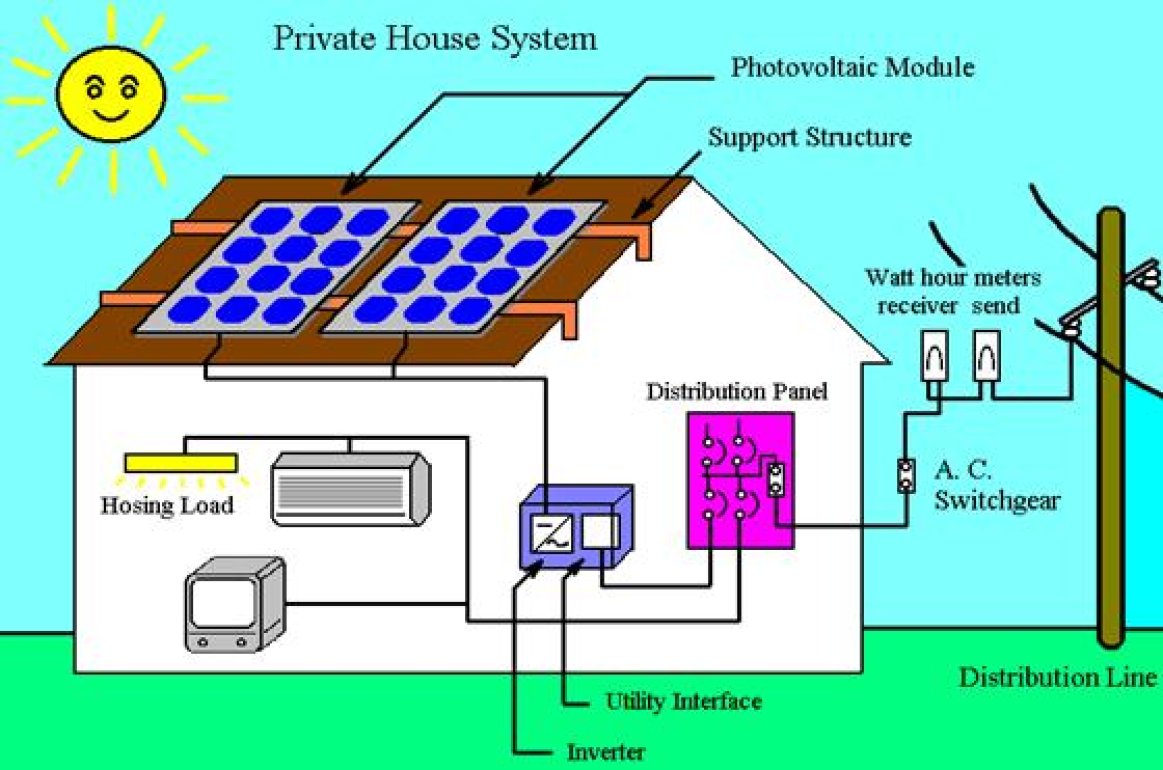

How to Connect Hybrid Inverter to Grid

Connecting a hybrid inverter to the grid can feel like a technical challenge, especially for first-time solar system owners. But once you understand the process, it becomes manageable and rewarding.

A proper connection not only ensures efficient power usage but also allows you to sell excess energy back to the grid. This guide explains how to connect a hybrid inverter to the grid safely, the configurations required, and key steps to follow before powering up.

How a Hybrid Inverter Works with the Electrical Grid

A hybrid inverter plays a central role in modern solar photovoltaic (PV) systems. It merges power from both solar panels and the utility grid, ensuring your home always has electricity, whether it comes from your panels, your battery storage system, or the grid.

When your panels generate excess energy, the inverter can store it in batteries or send it to the grid, depending on your system’s settings. During low solar production, like at night, it automatically switches to grid power.

This dual functionality makes hybrid inverters more efficient than traditional grid-tied models.

Configuration & Settings for Grid Connection in Hybrid Inverters

Before connecting, your inverter must be configured correctly to sync with the grid frequency and voltage. Each utility provider may have different requirements, so it’s crucial to check with your local authority or energy company.

Key settings include:

• Grid synchronization: Match your inverter’s settings with grid frequency (usually 50 or 60Hz).


• Voltage thresholds: Ensure your inverter can handle minor voltage fluctuations.


• Battery charging mode: Choose between AC coupling or DC coupling based on your setup.


• Safety limits: Set parameters for automatic shutdown in case of overvoltage or grid loss.


Modern hybrid inverters make these configurations user-friendly with digital displays and app-based control systems.

Step-by-Step Guide: Connecting a Hybrid Inverter to the Grid

1. Turn off all power sources: Disconnect both solar panels and batteries to prevent electrical shock.


2. Mount the inverter: Install the hybrid inverter near your main electrical panel in a ventilated area.


3. Connect the DC cables: Link solar panels to the inverter’s DC input ports following polarity guidelines.


4. Connect the AC side: Run cables from the inverter’s AC output to your main distribution board.


5. Install safety devices: Add breakers and surge protection devices between the inverter and grid for safety.


6. Link the communication lines: Set up monitoring cables or Wi-Fi for system tracking and performance analytics.


7. Power up and test: Reconnect the system, perform grid-synchronization checks, and monitor for stability.


Following these steps ensures a smooth grid-tie hybrid inverter installation that complies with local regulations.

Permissions, Regulations & Net-Metering for Grid-Tied Hybrid Inverters

Before connecting your hybrid inverter to the electrical grid, obtain all necessary permits. Many regions require approval from the utility provider to participate in net metering, a system that credits you for excess power sent back to the grid.

You’ll typically need:

• Utility interconnection approval


• Local electrical inspection


• Proof of inverter certification (UL or IEEE standards)


Net metering policies differ by state, so review local energy guidelines to maximize your savings.

What to Check Before Connecting a Hybrid Inverter to the Grid

Before flipping the switch, confirm these checks:

• Correct wiring for AC and DC connections


• Proper grounding to avoid electrical faults


• Firmware updates installed on the inverter


• Battery health and charge controller alignment


• Compliance documents approved by local authorities


A pre-connection checklist prevents costly mistakes and potential safety issues.

Troubleshooting Common Issues When a Hybrid Inverter Is Connected to the Grid

Sometimes, even a perfect setup encounters issues. Here’s how to address common ones:

• Inverter not detecting grid power: Recheck AC wiring and synchronization settings.


• Frequent shutdowns: May indicate voltage fluctuations or poor grounding.


• No energy export to grid: Verify your hybrid solar inverter net-metering settings and permissions.


• Low battery performance: Adjust charging configuration between AC and DC coupling.


If problems persist, contact Direct Solar Power for expert support and diagnostics.

Wiring and Safety Considerations for Grid-Tie Hybrid Inverters

Electrical safety is key when dealing with hybrid inverter systems. Always use insulated copper wires, install surge arrestors, and maintain proper grounding. Label all circuit breakers and use conduit piping for exposed wiring.

Hiring a certified technician ensures that your hybrid inverter grid feed system meets code standards and performs efficiently under all conditions.

Benefits of Grid-Connecting Your Hybrid Inverter & Solar Battery System

Connecting your hybrid inverter to the grid offers several benefits:

• Energy independence: Use stored solar power during outages.


• Cost savings: Sell excess energy through net metering.


• System efficiency: Maintain continuous power flow from solar, battery, or grid.


• Eco-friendly solution: Reduce dependency on non-renewable sources.


• Smart monitoring: Track system performance through real-time data.


A well-configured solar hybrid inverter with battery and grid connection gives you energy flexibility and better ROI.

Conclusion

Connecting your hybrid inverter to the grid is a smart move toward a reliable and efficient solar system. With proper setup, configuration, and safety checks, you can enjoy seamless power flow and financial benefits through net metering.

For professional-grade hybrid inverters, installation guidance, and solar solutions, visit Direct Solar Power.

Frequently Asked Questions

1. What is a hybrid inverter and how does it differ from a standard grid‐tie inverter?

A hybrid inverter works with both solar panels and batteries, while a grid-tie inverter connects only to the grid.

2. Can I connect a hybrid inverter to the grid without batteries?

Yes. Hybrid inverters can operate in grid-only mode without batteries if configured correctly.

3. What permits or approvals are required to grid-connect a hybrid inverter?

You need utility approval, local electrical inspection, and compliance with safety standards.

4. How do I wire a hybrid inverter to my main electrical panel and the grid?

Connect the inverter’s AC output to your main panel through circuit breakers and surge protectors.

5. What safety checks should I perform before switching on a grid-connected hybrid inverter?

Inspect grounding, confirm voltage settings, and test grid synchronization before powering up.
