How to Install a DIY Mini Split AC/Heat Pump in Just 9 Steps

It’s a blazing summer day, and your old AC unit just isn’t cutting it. Or maybe you’re tired of sky-high energy bills and want something more efficient. Enter the DIY mini split AC, a compact, efficient system that you can install yourself. But where do you start? The idea of handling refrigerant lines, wires, and mounting brackets might sound intimidating.

Don’t worry—installing a DIY mini split AC is easier than it seems, and I’m here to guide you through it. Whether upgrading your home’s comfort or tackling your first big DIY project,If you’ve ever wondered how to install a mini split, this step-by-step guide will help you confidently tackle the project. Let’s make your space cool (or warm) without breaking the bank!

Why Choose a DIY Mini Split AC for Your Home?

Mini split systems are gaining popularity for their compact size, energy efficiency, and ability to heat or cool specific areas. Opting for a DIY heat pump can save you the hefty cost of hiring professionals and give you the satisfaction of upgrading your home yourself. Whether you're cooling a bedroom, home office, or studio, these systems provide targeted climate control without the need for extensive ductwork. Plus, they’re perfect for those who enjoy hands-on home improvement projects.

What You’ll Need

Before diving into the installation of your DIY AC unit, gather the following tools and materials:

• Mini split system (indoor unit and outdoor condenser)
• Mounting bracket
• Drill with appropriate bits
• Vacuum pump
• Refrigerant line set
• Electrical wires and connectors
• Lineset cover
• Sealant or caulk
• Wrenches, level, and safety gear

How to Install a DIY Mini Split AC in 9 Steps

With these steps, you can tackle your DIY heat pump installation confidently and efficiently.

Step 1: Unpack and Inspect the Units

• Carefully unbox the indoor and outdoor units.
• Check for any visible damage or missing components.
• Review the installation manual for model-specific instructions.

Pro Tip: Before installing a mini split heat pump, ensure all components are intact and undamaged.

Step 2: Plan Your Setup

• Indoor Unit: Choose a location with at least 6 inches of clearance around the unit for proper airflow.
• Outdoor Unit: Select a spot with good airflow, away from direct sunlight and obstructions.
• Ensure the wall for the indoor unit is sturdy enough to support its weight.

Why It Matters: A successful DIY mini split install starts with choosing the right locations for the indoor and outdoor units.

Step 3: Install the Mini Split Wall Mounting Bracket

• Use a level to align the mounting bracket on the chosen wall.
• Secure it with screws or anchors, ensuring it's firmly attached.
• Double-check the alignment before proceeding.

Quick Tip: If mounting on drywall, use appropriate anchors to support the unit's weight.

Step 4: Drill the Lineset Hole

• Drill a 3-inch hole through the wall for the refrigerant lines, drain hose, and cables.
• Angle the hole slightly downward to facilitate drainage.
• Use a hole saw for a clean cut.

Safety First: Wear safety glasses and gloves while drilling.

Step 5: Mount the Indoor Unit

• Carefully hang the indoor unit on the mounting bracket.
• Feed the drain hose and refrigerant lines through the drilled hole and attach them to the indoor unit.
• Ensure the unit is securely in place and level.
• Installing a mini split DIY requires careful alignment and a secure connection for proper operation.

Why This Step Matters: Proper mounting prevents leaks and ensures efficient operation.

Step 6: Position and Secure the Outdoor Condenser

• Place the condenser on a level surface, such as a concrete pad or wall-mounted bracket.
• Ensure there's at least 12 inches of clearance around it for airflow.
• Use vibration pads to reduce noise if necessary.

Pro Tip: Avoid placing the condenser near shrubs or other obstructions.

Step 7: Connect the Refrigerant Lines and Electrical Wiring

• Attach the refrigerant lines to the outdoor unit, ensuring tight connections.
• Connect the electrical wires according to the system’s wiring diagram.
• Secure the wires and lines neatly with cable ties.

Checklist for Success:

• Tighten all connections with a wrench.
• Follow local electrical codes for safety.
• Apply weatherproofing to all outdoor connections.
• This is a key part of your ductless mini split heat pump installation, so follow the wiring diagram closely.

Step 8: Vacuum the System and Test for Leaks

• Attach a vacuum pump to the service port to remove air and moisture from the refrigerant lines.
• Once vacuuming is complete, open the refrigerant valves.
• Check for leaks using soapy water—no bubbles mean you're good to go!
• This step is crucial for ensuring your heat pump mini split installation runs efficiently without contaminants.

Why This Is Critical: Proper vacuuming ensures the system runs efficiently without contaminants.

Step 9: Seal the Lineset Hole and Add Finishing Touches

• Fill the drilled hole with sealant to block drafts and prevent pests.
• Install a lineset cover to protect and conceal the refrigerant lines and cables.
• Double-check all connections and give everything a final inspection.

Pro Tip: The final step of your mini split installation is sealing and finishing for a clean, professional look.

How Big a Cabinet is Needed for the Indoor Unit?

Most mini split indoor units don’t require a large cabinet, but you may wonder how big a cabinet needed for indoor heat pump unit installations. The indoor unit doesn’t require a large cabinet or dedicated enclosure when installing a DIY ductless mini split AC. Most units are designed to be compact and wall-mounted, typically measuring between 32–40 inches wide and 12–14 inches tall.

To ensure proper airflow, leave at least 6 inches of clearance on all sides of the unit. A small, unobstructed space on a wall or even a corner shelf can suffice, as long as the airflow isn’t blocked by furniture or decor. This makes it easy to fit the unit into almost any room design without sacrificing efficiency.

Brand	Model	BTU Capacity	Coverage Area (sq. ft.)	Price Range

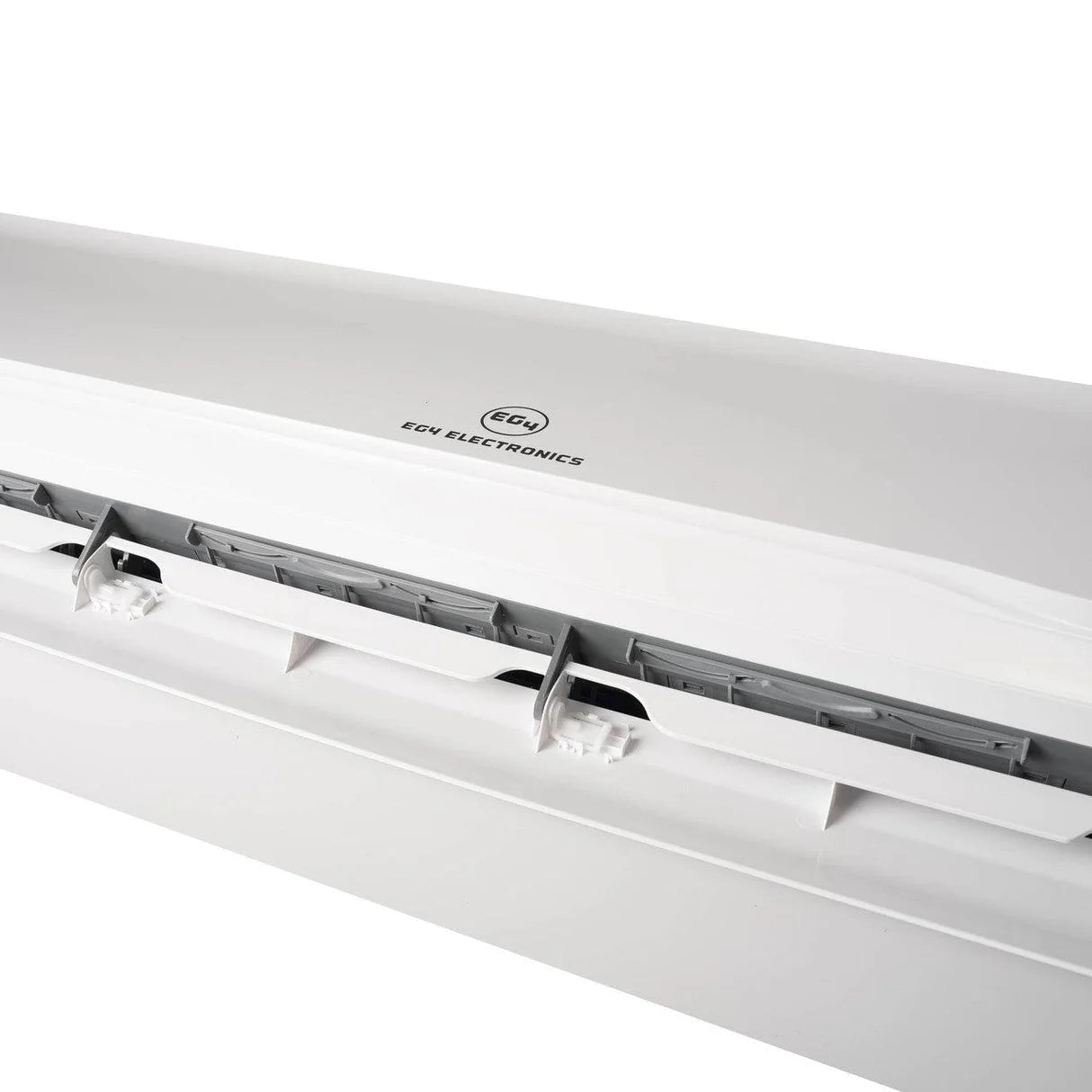

EG4	9K Mini Split	9,000 BTU	Up to 450	$1,149
EG4	12K Hybrid AC/DC	12,000 BTU	Up to 650	$1,349
Plug–N-Cool	SEER2 21	24,000 BTU	500–750	$1,899

Note: Prices are approximate and may vary based on the retailer.

Can I Put a Plug End on a 110V Mini Split?

The short answer: Yes, but with caution. Most 110V mini split systems are designed to be hardwired for safety and efficiency. However, if your system allows for a plug end connection, it’s essential to follow these guidelines to ensure everything works safely and correctly:

• Check the Manual: Not all 110V mini splits are compatible with plug ends. The manufacturer’s manual will specify whether it’s safe to use a plug or if hardwiring is required.
• Use a Properly Rated Plug: If approved, select a plug rated for the system’s amperage and voltage. A mismatched plug can cause overheating or even electrical failure.
• Dedicated Circuit Required: A mini split draws a significant amount of power, so it needs its own dedicated circuit. Sharing the circuit with other appliances can overload it.

While putting a plug end on a 110V mini split might seem like a convenient option, it’s not always the best choice. Always prioritise safety and adhere to your system’s specifications for the best results.

Maintenance Tips for Your Mini Split System

Keep your system running smoothly with these tips:

• Clean the filters monthly to prevent dust buildup.
• Check refrigerant levels annually to maintain efficiency.
• Inspect the outdoor condenser regularly to remove leaves and debris.

Pros and Cons of DIY Mini Split Installation

Pros:

• Saves on professional installation costs.
• Flexible placement options.
• Energy-efficient and eco-friendly.

Cons:

• Requires time and effort to set up.
• Mistakes can void the warranty.

Take the DIY Leap—Your Comfort Awaits!

Installing a DIY mini split AC is a rewarding project that saves money and enhances your home’s comfort. By following these 9 steps, from mounting the indoor unit to testing the refrigerant lines, you’ll gain a solid understanding of the installation process. With careful planning and the right tools, achieving a professional-quality setup is entirely within reach.

Whether you’re cooling a single room or upgrading your entire system, this guide has covered all the essentials to ensure success. Remember, attention to detail is key, so take your time and follow each step carefully. With your new mini A/C split systems, you’ll enjoy efficient heating and cooling year-round—without breaking the bank.
