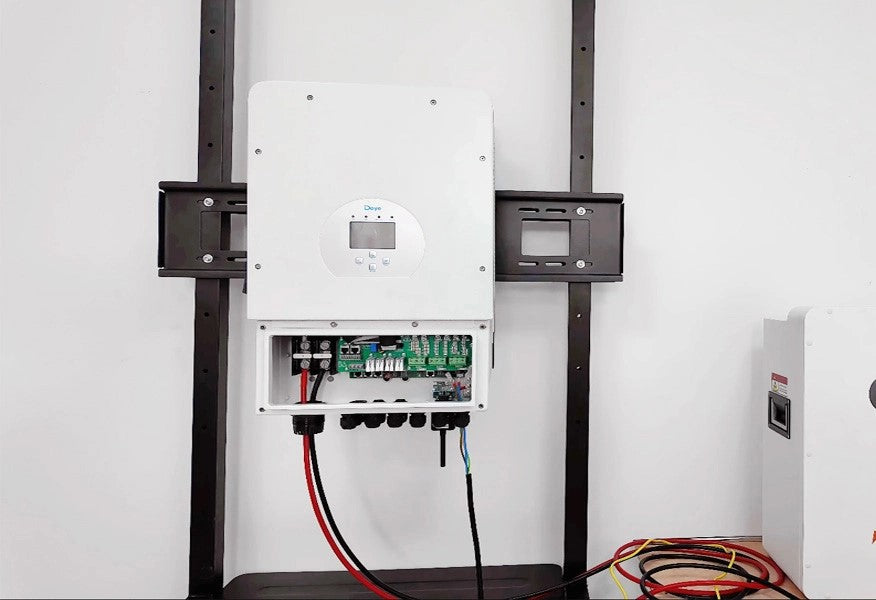

How to Wire Inverter to Battery – No Sparks, Just Power

How to Wire Inverter to Battery – No Sparks, Just Power

Wiring an inverter to a battery isn’t rocket science—but get it wrong, and you could fry your gear or drain your power fast.

This quick guide shows you how to do it safely and efficiently. Whether you're setting up for backup power or going off-grid, here’s how to get it right.

How to wire an inverter to a battery?

Connect the inverter’s positive and negative terminals to the battery, add a fuse on the positive line, and double-check polarity.

Key Takeaways

  • Match inverter and battery voltage (e.g., 12V to 12V).
  • Always use a fuse or circuit breaker on the positive line.
  • Use thick cables (4 AWG or lower) to prevent voltage drop.
  • Ground the inverter if a ground lug is available.
  • Double-check polarity: positive to positive, negative to negative.
  • Insulate tools and wear gloves for safety.
  • Don’t leave the inverter running constantly unless in low-power mode.

Why Proper Inverter Wiring Matters

Why Proper Inverter Wiring Matters

Wiring your inverter right isn’t just a “nice-to-have.” It’s the cheat code to keep your system safe and running smoothly.

Mess it up, and you're flirting with short circuits, drained batteries, or worse—fried gear. Think of it like putting your kicks on the wrong feet. Uncomfortable, inefficient, and yeah, kinda risky.

Proper wiring means clean power flow, no flickers, no stress. It’s the difference between a slick setup and a meltdown waiting to happen.

So take a beat. Do it clean, do it smart, and you won’t have to babysit your system every weekend.

Tools & Materials You’ll Need

No need to raid a hardware store, but you’ll want the right gear on hand. Start with the basics: an inverter, a 12V or 24V battery, and quality battery cables.

You'll also need a wrench or socket set, wire strippers, and electrical tape. Add a fuse or circuit breaker for safety—that’s non-negotiable.

A multimeter's cheat code to avoid guesswork. And if you’re mounting the setup, bring brackets or a tray.

Keep it neat. Zip ties help with cable management so things don’t look like a spaghetti mess. That’s it—clean, safe, ready to wire.

Understanding the Basics: Inverter and Battery Compatibility

Before you even touch a wire, make sure your inverter and battery are vibing. Voltage needs to match. A 12V battery? Pair it with a 12V inverter. No guessing games.

Check the inverter type too. Pure sine wave plays nice with sensitive gear, while modified sine wave is fine for basic stuff. Think: MacBook vs power drill.

Also, mind your battery capacity. If it’s too low, your setup drains fast. Too big, and your inverter’s sweating to keep up.

Bottom line? Match voltage, know your inverter style, and don’t cheap out on the battery. Get those three right and you're already halfway to a setup that won’t flake when the lights go out.

Step-by-Step Guide: How to Wire an Inverter to a Battery

Wiring an inverter to a battery isn’t rocket science. But get it wrong and you're flirting with fried wires—or worse, fried gear. Here's the cheat code to doing it right, without the drama.

1. Kill the Power Vibe First

Safety’s the name of the game. Make sure everything’s powered off—your inverter, battery, whatever’s in the mix. No one wants sparks flying while you’re mid-setup.

2. Get the Right Gear

You’ll need:

  • Inverter
  • Battery (12V or 24V depending on your setup)
  • Thick gauge cables (don’t skimp)
  • Fuse or circuit breaker (your insurance policy)
  • Wrench, gloves, and safety goggles if you’re being fancy

Make sure your inverter is rated for the battery size. No mismatched hookups here.

3. Connect the Ground Wire (If It Has One)

Some inverters come with a ground lug. Hook it to your chassis ground or a grounding rod. Keeps things safe and stable. Think of it as your setup’s secret bodyguard.

4. Attach the Positive Cable

Take your thick red cable and connect it from the inverter’s positive terminal (+) to the battery’s positive terminal.
But hold up—don’t let that cable touch anything metal while you’re working. We’re wiring, not welding.

5. Add a Fuse or Breaker

This step’s non-negotiable. Drop a fuse or breaker in the positive line, close to the battery. If anything shorts out, it cuts the power fast—no electrical chaos. Aim for a fuse rated slightly higher than your inverter’s continuous watt draw.

6. Connect the Negative Cable

Now run your black cable from the inverter’s negative terminal (–) to the battery’s negative. Easy win. Tighten the terminals snug but don’t Hulk-smash them.

7. Double Check Everything

Look over all connections. Make sure they’re clean, tight, and polarities match. Positive to positive. Negative to negative. No Frankenstein wiring jobs here.

8. Fire It Up

Once it’s all locked in, power up the inverter. Plug something in to test. If everything hums along nicely, congrats—you’ve got juice.

Pro tip: Don’t leave the inverter running 24/7 unless it has a low-power mode. It’ll sip battery life like a slushy on a summer day.

That’s it. You’re wired, safe, and ready to flex your power setup like it belongs on a yacht.

Common Mistakes to Avoid

Don’t skip the fuse. It’s not optional, it’s your safety net if things short out. Wiring the inverter straight to the battery without one? That’s how stuff fries.

Also, watch your polarity. Mix up positive and negative, and you're asking for sparks—not the good kind. Loose connections are another rookie move. Tighten those terminals like you mean it.

And yeah, no tangled mess of wires. This isn’t spaghetti night—keep it clean, labelled, and low-key organised.

Safety Tips for Wiring Inverters to Batteries

Safety Tips for Wiring Inverters to Batteries

Don’t skip safety, even if you’re in a rush. One wrong move, and it’s more than just a blown fuse. Kill the power before doing anything. No wires should spark while you're working.

Use insulated tools and gloves. You're not trying to win a Darwin Award. Double-check polarities—positive to positive, negative to negative. Mess it up, and your gear might fry.

And yeah, keep a fire extinguisher nearby. Just in case things get spicy.

Frequently Asked Questions

1. Can I wire the inverter directly to the battery?

Yep, that’s the move. Just make sure it’s fused properly to avoid fireworks.

2. What size wire should I use?

Short answer: go thick. Like, 4 AWG or lower. Keeps the voltage drop chill.

3. Do I need a fuse?

Yes. Always. It’s your “don’t burn the house down” insurance.

Conclusion

Wiring an inverter to a battery isn’t rocket science, but it does need a steady hand and a clear plan. If you’ve followed the steps, you’re good to go—no smoke, no sparks.

Double-check your connections, keep safety gear on standby, and don’t cheap out on quality cables. This setup? It’s your off-grid cheat code.

Just keep it tight, tested, and ready to flex when the power cuts out.
