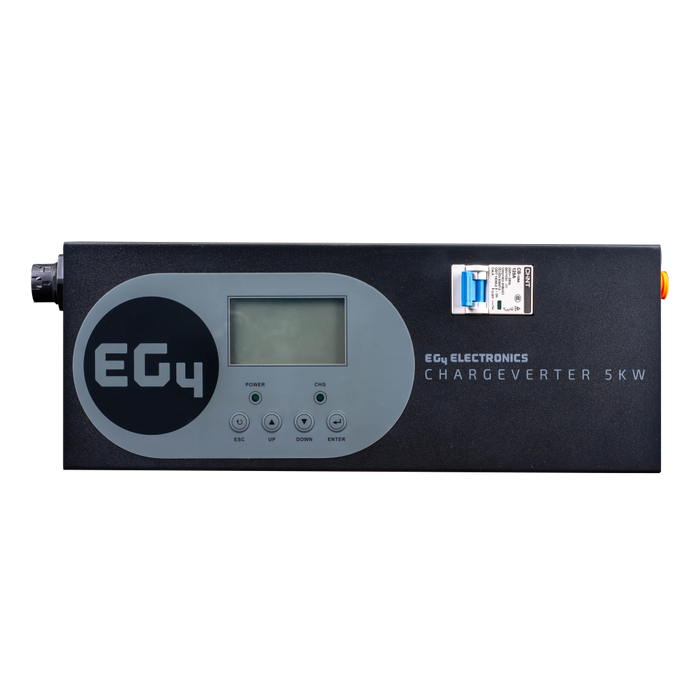

EG4 Chargeverter

Introducing the EG4 Chargeverter 5KW AC Charger, a high-performance battery charger designed for reliability and versatility. With its 48V 100A capacity and 5120W output, this charger ensures efficient power supply for various applications. Its compact design and dual 240/120V input make it suitable for diverse setups.

EG4 Chargeverter Features

Bad Weather Resilience:

• Charge batteries during low light conditions using a generator (up to 100A)
• Ideal for unpredictable weather patterns

Protection from "Dirty Power"

• Guards against unreliable sine waves from lower-budget generators
• Protects inverters from power quality issues

Dry Contacts

• Control of generator start/stop function based on Voltage or state of charge (SOC)

Using EG4 Batteries?

• Closed loop communication with EG4 batteries for charging based on battery state of charge (SOC), when batteries are not in communication with the inverter

EG4 Chargeverter Specifications

Output Specs

• Optimized for 240 VAC power supply
• Nominal Battery Voltage: 48VDC
• Adjustable Charge Current: 0-100A at 240VAC
• Adjustable Charge Voltage: 43-57VDC (Default at 54VDC)
• Maximum Output Watts: 5120W at 240 VAC

AC Input Specs

• Plug directly into a generator without concern for power issues
• AC Input Voltage Range: 90-264VAC
• Maximum Input Amps: 26A at 240VAC, 28A at 120VAC

What's Included with the EG4 Chargeverter

• Chargeverter-GC
• (5) Mounting Screws (M4-0.7 x 7), to mount the charger (4 for mounting & 1 spare)
• (2) Mounting Brackets
•  (5) Mounting Screws (M3), to connect the mounting brackets to the charger (4 for mounting & 1 spare)
• RS485 Communication cable (RJ45 Plug to RJ45 Plug)
• RS485 to USB upgrade cable (RJ45 Plug to USB-A)
• Dry contact cable (RJ11 Plug into three bare and tinned wire pairs labeled Normally Open
• (NO), Normally Closed (NC), and Common (C) for connection to an external device (e.g. generator)

Documents & Downloads

Owner's Manual
