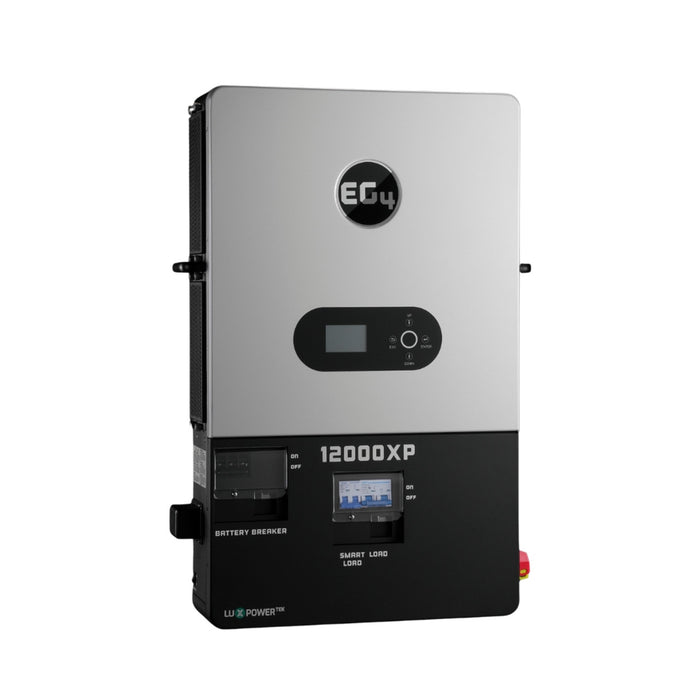

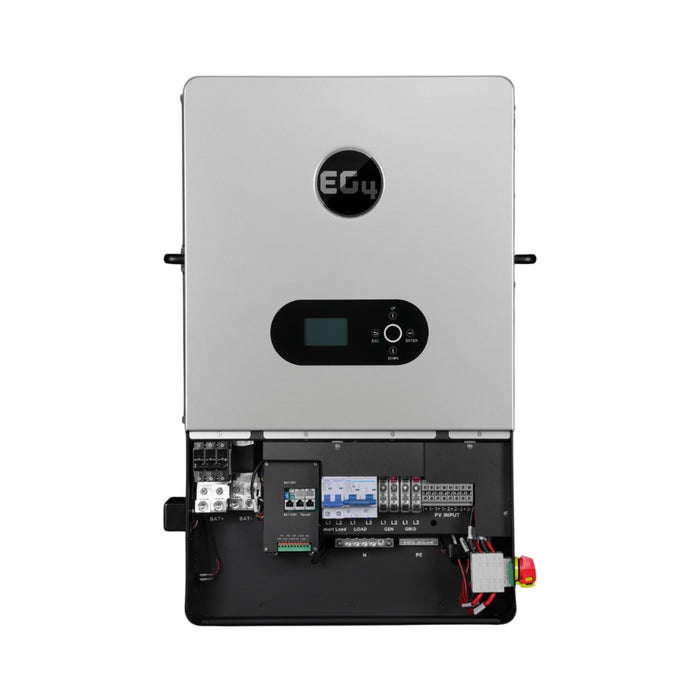

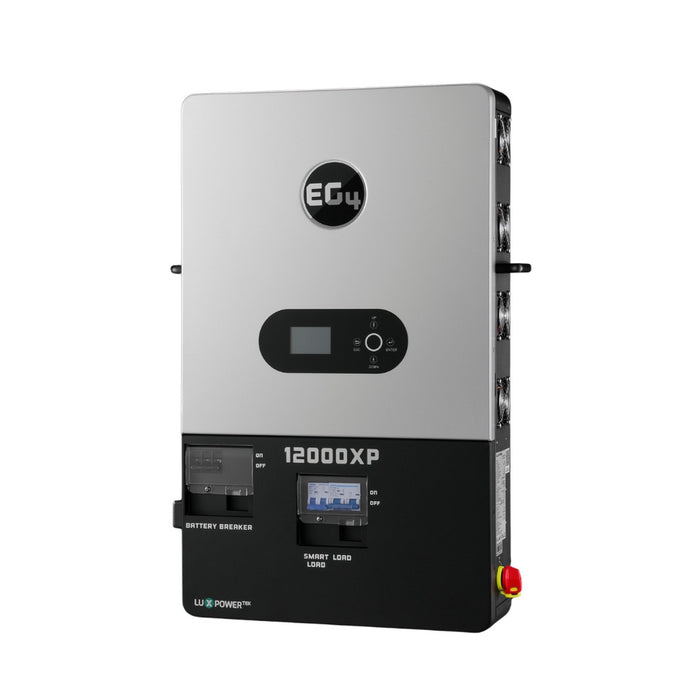

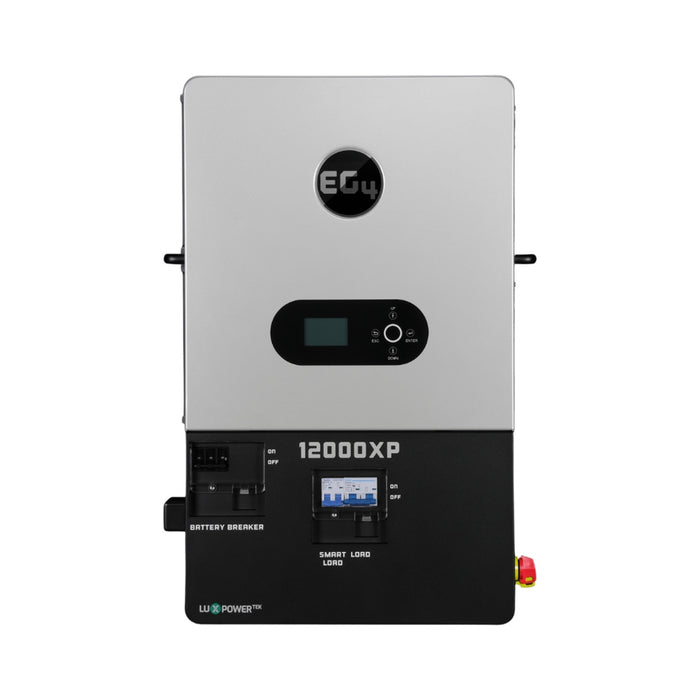

EG4 12000XP Off-Grid Solar Inverter

The EG4 12000XP is ideal for those looking for a powerful, all-in-one off-grid inverter with robust performance, reliable durability, and advanced communication capabilities.

It can operate fully off-grid or integrate with grid power, making it a versatile choice for both residential and commercial applications.

EG4 12000XP Off-Grid Inverter Features

• High Input Voltage (480VDC): Supports high-voltage input, reducing the need for extensive cabling and allowing for up to 24kW PV input without a combiner box.

• Dual MPPT Design: Ensures optimal solar energy utilization, providing efficiency and stability under varying sunlight conditions.

• Plug-in Wi-Fi Capability: Monitor and adjust settings remotely using the EG4 app or Monitor system, adding convenience and control from any location.

• Closed-Loop Communication: Seamlessly integrates with EG4 48V batteries and other supported brands, offering enhanced system performance and safety.

• Rapid Shut Down Compliance: Equipped with NEC 690.12-ready rapid shutdown (RSD) capabilities for compliance and peace of mind in critical situations.

Performance Highlights

• 12kW High Power Output with Surge Capacity up to 18kW: Delivers robust, consistent power with the ability to manage heavy-duty appliances and equipment in off-grid settings.

• Expandable Power Options: Parallel up to six units to reach a 72kW system, providing the flexibility to scale power output as needed.

• High Efficiency Rates: Enjoy an impressive 99% MPPT efficiency, maximizing energy harvest and minimizing energy loss.

Technical Specifications

• AC Input: 120/240VAC | 50/60 Hz

• Max Continuous Output: 12kW

• Surge Capacity: 18kW (5 seconds)

• Battery Compatibility: Lead-Acid/Lithium, with a recommended minimum of 400Ah per inverter

• Operating Temperature: 32°F – 113°F (0°C – 45°C)

• Protection Features: PV Reverse Polarity, Over-Voltage, and Surge Protection

• Warranty: 5 years

Ideal Applications

• Residential Off-Grid Living: Perfect for homes wanting to break free from grid reliance.

• Remote Worksites and Cabins: Ensures a steady power supply, even in isolated locations.

• Commercial and Industrial Use: Robust enough to handle demanding off-grid requirements.

Why Choose the EG4 12000XP 48V Inverter?

With high output power, advanced safety features, and remote management capabilities, the EG4 12000XP off-grid split-phase inverter provides an industry-leading solution that meets all your off-grid energy needs. Engineered for efficiency and durability, this split-phase all-in-one inverter is your best choice for reliable and scalable power.

Documents & Downloads

• Specifications Sheet
• Owner's Manual
• Certificate Of Compliance
