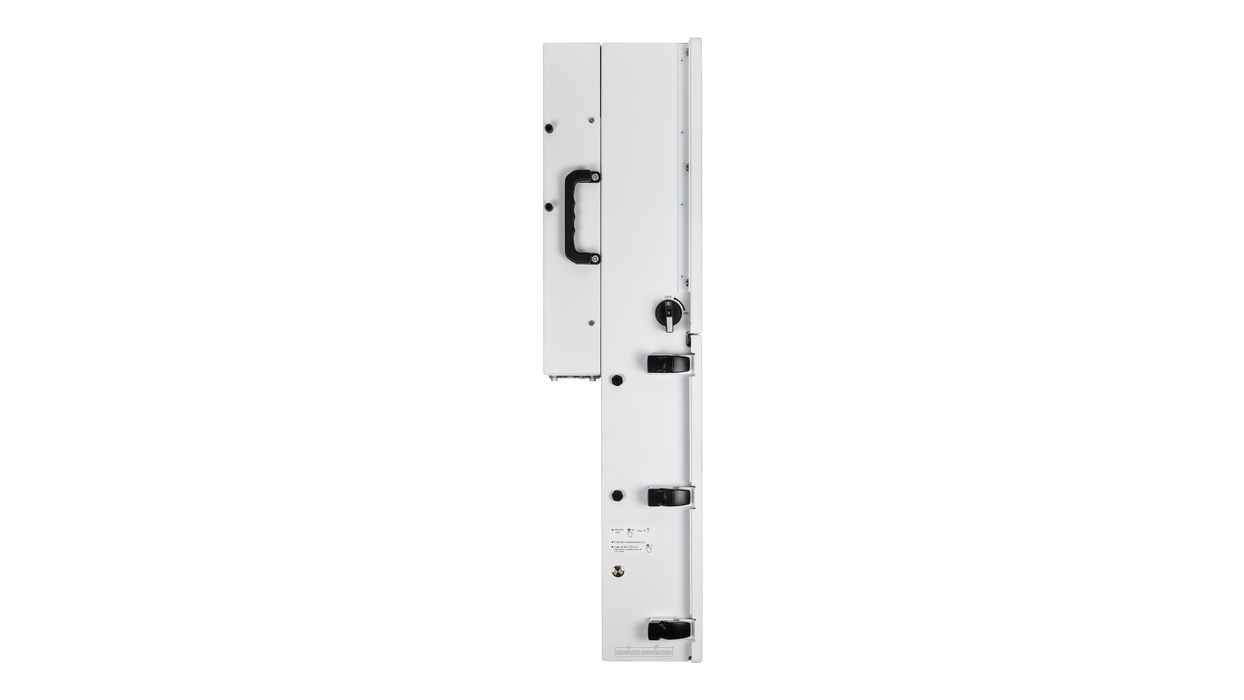

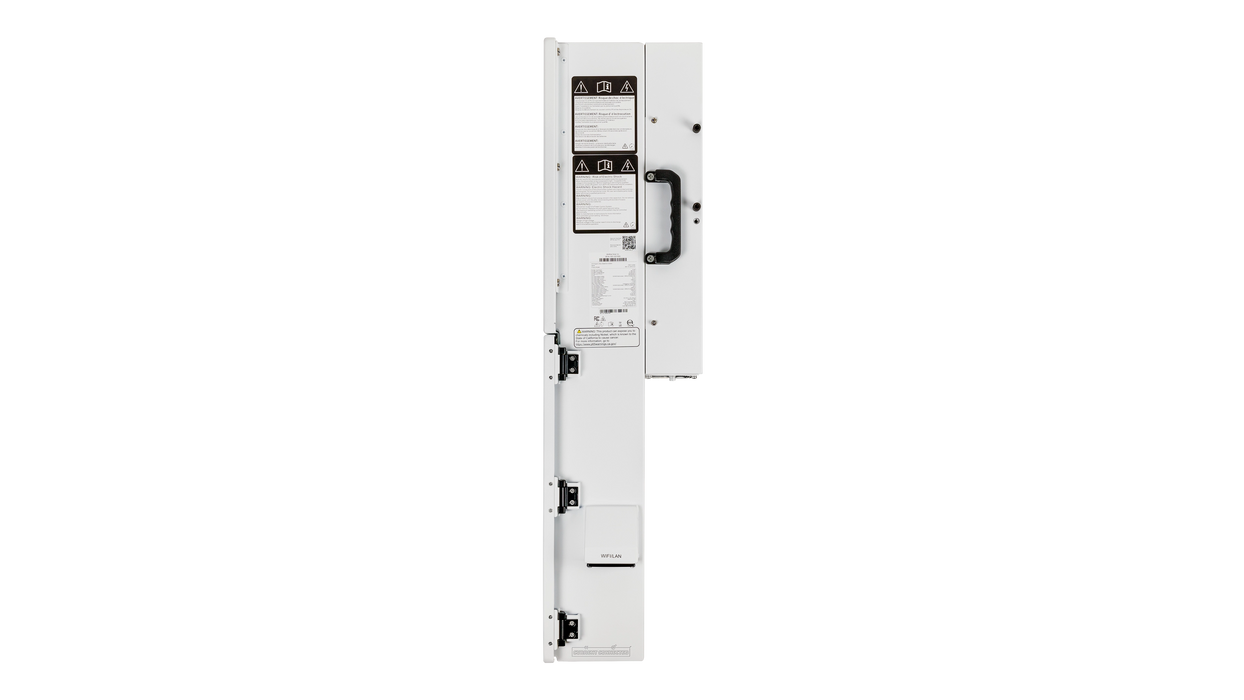

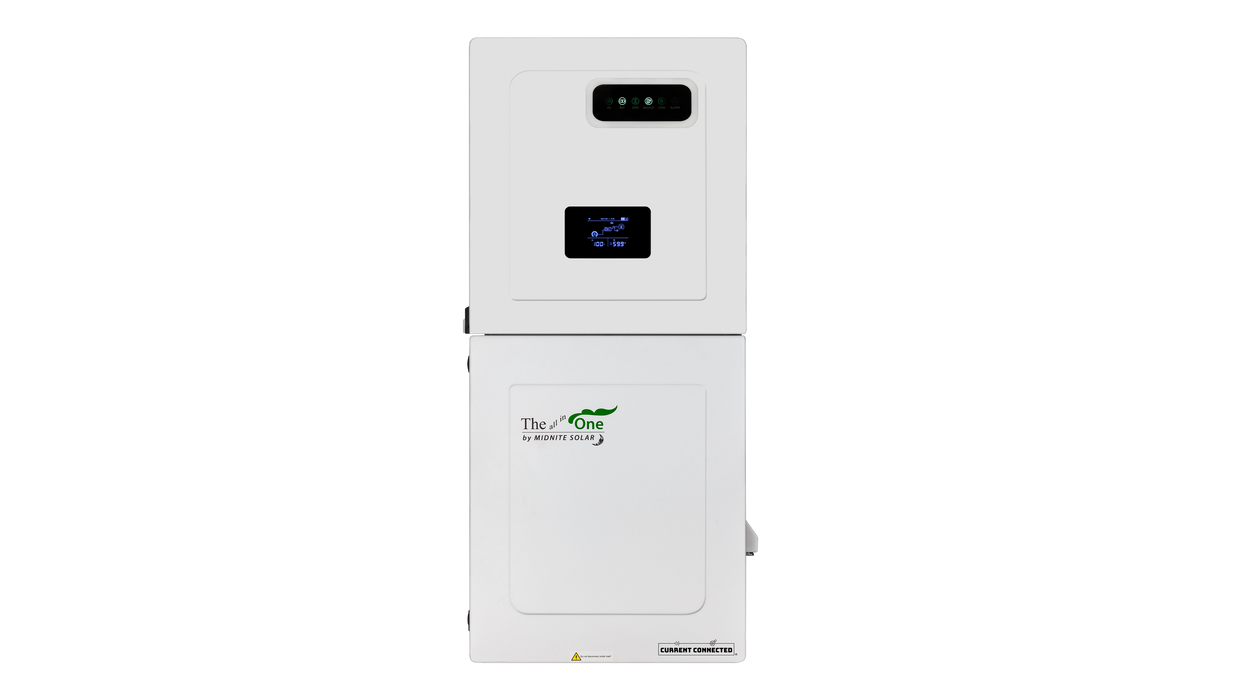

MidNite Solar TheOne MN15-12KW-AIO - 11.4kW Hybrid All-In-One Inverter System

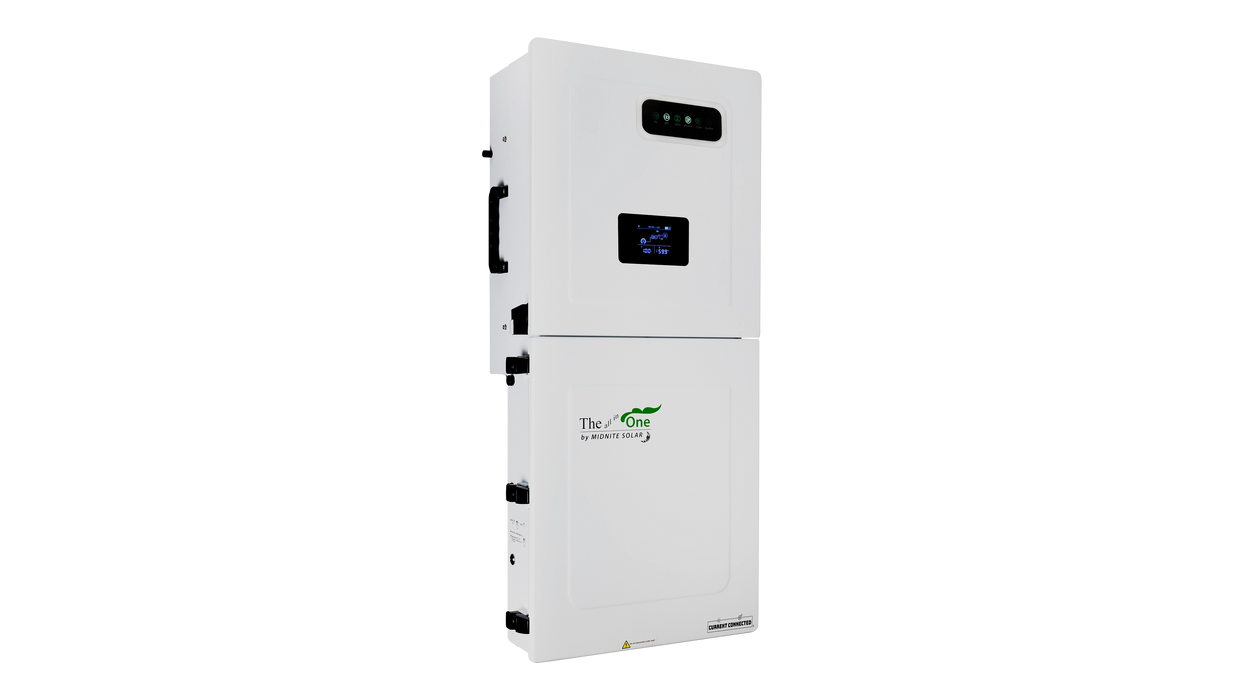

MidNite Solar MN15-12KW-AIO TheOne Hybrid All-In-One Solar Inverter

The MidNite MN15-12kW-AIO is a powerful 11,400-watt system equipped with three MPPT charge controllers and three 120/240V programmable outputs, ideal for load shedding or opportunity loads.

These outputs eliminate the need for an external programmable distribution box, and heavy-use loads can be managed through customizable user settings. With a transfer time of under 10ms, it also functions as a UPS for critical loads and includes an automatic generator start/stop feature to activate a generator when battery levels are low.

This inverter’s three MPPT inputs can handle the full 600VDC allowed by the NEC, enabling larger solar arrays to meet power demands effectively. Each MPPT input supports 30A/22A/22A, offering flexibility for diverse panel strings.

Additionally, the MidNite AIO features real-time monitoring and remote control via its web-based app, allowing you to track performance and adjust settings conveniently from anywhere.

Features

• Stackable up to 9 units
• Max Efficiency 98.0% (PV to AC)
• Max Efficiency 94.5% (Batt to AC)
• Supports AC coupling and Self-Consumption
• Continuous 100% AC Power (11.4kW with PV, 10kW without PV)
• Supports 40-64VDC Lithium or Lead-Acid Batteries
• Residential and Commercial
• UL1741B Sell to Grid
• 10 Year Warranty

Specifications

• 210A Charge/Discharge Current
• 11.4kW Nominal Output Power
• 15,000W Max PV Input Power
• 3 Separate MPPTs
• Max Input Current(Per MPPT): 30A/22A/22A
• PV Voltage: 600V
• 48V Nominal Battery Voltage
• Weight: 98lbs
• Dimensions(HxWxD): 38.3 x 16.5 x 10.27 inches

Documents & Downloads

• Brochure
• Manual
• UL 1741 Certificate
