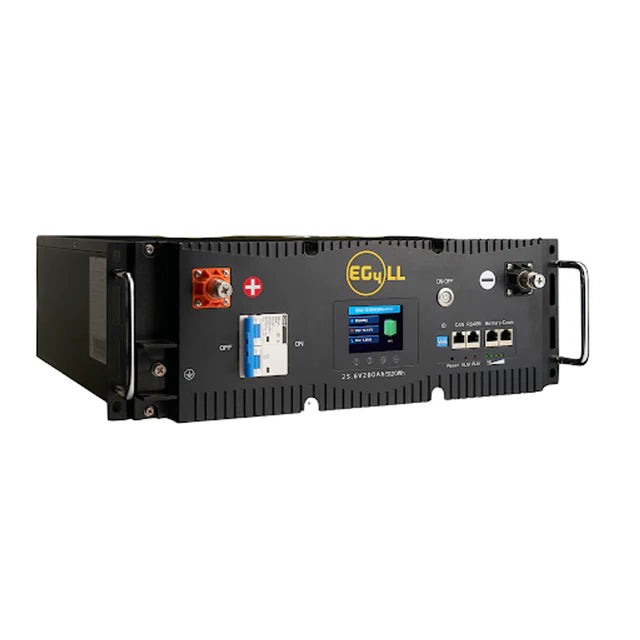

EG4 LL Lithium Battery (V2) | 24V 200AH | Server Rack Battery
Questions? Ask an Expert
Buy with confidence. Contact our experts today.
SKU EG4-LL-S24-200

EG4 LL Lithium Battery (V2) | 24V 200AH | Server Rack Battery

$1,329.00 - $1,329.00
$1,329.00
$1,329.00 - $1,329.00
$1,329.00

Estimated Shipping Widget will be displayed here!
Questions? Ask an Expert
Buy with confidence. Contact our experts today.

EG4 LL Lithium Battery (V2) | 24V 200AH | Server Rack Battery

Upgraded EG4-LL (Lifetime Lithium) Lithium Iron Phosphate 25.6 volt battery (24V) 5.12kWh with 200A internal BMS, based on the same subset features of the previous industry renowned EG4-LL Lithium Battery. Fully Compatible with Previous EG4-LL Model(See below).

Composed of (16) UL listed prismatic 3.2V cells which have been tested at 7,000 deep discharge cycles to 80% DoD - fully charge and discharge this battery daily for over 15 years without issue. Reliable and rigorously tested, with a 99% operating efficiency.
Includes an LCD screen to quickly view your batteries' most important information, but now features Selectable closed-loop inverter communications including Schneider, Solark, Victron, Growatt, and EG4! A simple plug-and-play interface that has all the essentials built in for easy setup.

What's included

  • (1) 1 foot RS485 Communication Cable and (1) Set of Parallel Cables per battery
  • (1) RS485 USB Battery Comm Cable PER (6) BATTERIES (shipped separately)

EG4 LL 24V 200AH Lithium Battery (V2) Key Features

  • Nominal Voltage: 25.6 volt battery
  • Nominal Capacity: 200Ah
  • Kilowatt-hour(s): 5.12kWh
  • Dimensions: 17.7" x 19.3" x 6.1"
  • Design Life: +15 Years at 80% DoD

EG4 24V Lithium Battery Additional Information

  • Rated for 7000 deep charge & discharge cycles
    • 15-year life with 80% depth of discharge daily, designed for up to 20-year life
  • Tier One, A+ Cell Composition, 99% Efficiency LiFePo4 16-Cell Pack
  • #1 Energy Storage Density Server Rack Battery Form Factor
  • Selectable closed-loop inverter communications including Schneider, Solark, Victron, Growatt, and EG4!
  • Dual Onboard automatic fire arrestors
    • Failsafe operation in high-risk environments and to protect against rare
      hardware failure on high voltage solar charge controllers!
  • Parallel up to 16 batteries
    • Get the most power possible! Up to 81.9kWh while maintaining BMS
      communications!
  • Have existing V1 EG4-LL Batteries? Enable expanded communication for existing V1 EG4-LL Battery Banks by using a new V2 EG4-LL Battery as your master battery. This feature will be available with a firmware upgrade that will be released soon.

Warranty

10 year warranty through EG4 electronics

Performance Components

  • Reliable Built-In EG4 Smart BMS, Voltage, Current, Temp. and Health Management
  • Stress-Free Battery Bank Expansion Capacity
  • Cell & Module Voltage Protection
  • Short Circuit Protection >250A <0.1mS
  • Temperature Protection
  • Operating Power Consumption  <25mA

Advanced Configurability

  • On-board LCD Screen
  • PC Monitoring Software
  • Lifetime firmware updates

Downloads

      Order your EG4 LL Lithium Battery (V2) | 24V 200AH | Server Rack Battery Today!
