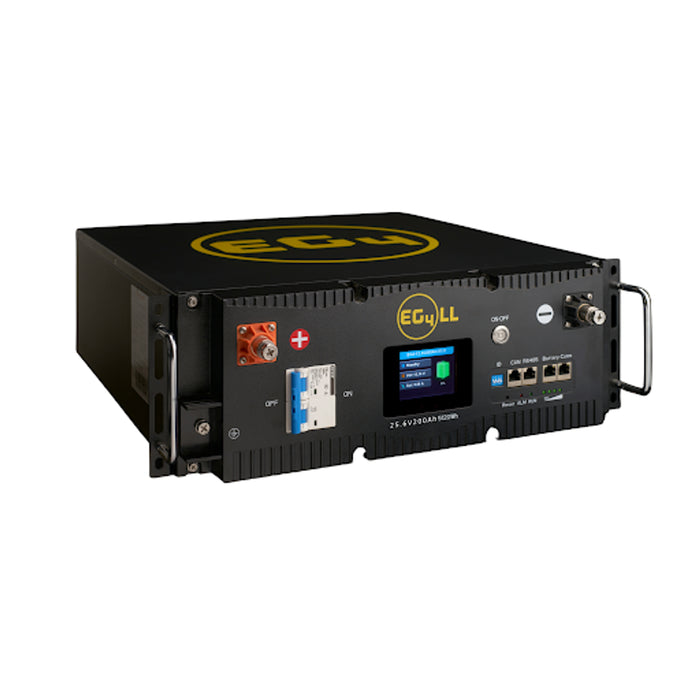

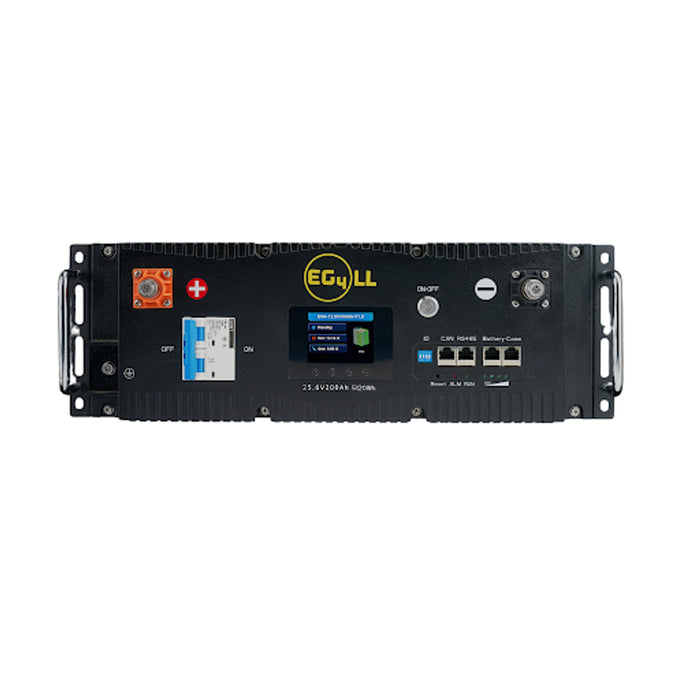

EG4 LL Lithium Battery (V2) | 24V 200AH | Server Rack Battery

EG4 LL Lithium Battery (V2) | 24V 200AH | Server Rack Battery

Upgraded EG4-LL (Lifetime Lithium) Lithium Iron Phosphate 25.6 volt battery (24V) 5.12kWh with 200A internal BMS, based on the same subset features of the previous industry renowned EG4-LL Lithium Battery. Fully Compatible with Previous EG4-LL Model(See below).

Composed of (16) UL listed prismatic 3.2V cells which have been tested at 7,000 deep discharge cycles to 80% DoD - fully charge and discharge this battery daily for over 15 years without issue. Reliable and rigorously tested, with a 99% operating efficiency.
Includes an LCD screen to quickly view your batteries' most important information, but now features Selectable closed-loop inverter communications including Schneider, Solark, Victron, Growatt, and EG4! A simple plug-and-play interface that has all the essentials built in for easy setup.

What's included

• (1) 1 foot RS485 Communication Cable and (1) Set of Parallel Cables per battery
• (1) RS485 USB Battery Comm Cable PER (6) BATTERIES (shipped separately)

EG4 LL 24V 200AH Lithium Battery (V2) Key Features

• Nominal Voltage: 25.6 volt battery
• Nominal Capacity: 200Ah
• Kilowatt-hour(s): 5.12kWh
• Dimensions: 17.7" x 19.3" x 6.1"
• Design Life: +15 Years at 80% DoD

EG4 24V Lithium Battery Additional Information

• Rated for 7000 deep charge & discharge cycles
  • 15-year life with 80% depth of discharge daily, designed for up to 20-year life

• Tier One, A+ Cell Composition, 99% Efficiency LiFePo4 16-Cell Pack

• #1 Energy Storage Density Server Rack Battery Form Factor

• Selectable closed-loop inverter communications including Schneider, Solark, Victron, Growatt, and EG4!

• Dual Onboard automatic fire arrestors
  • Failsafe operation in high-risk environments and to protect against rare
    hardware failure on high voltage solar charge controllers!


• Parallel up to 16 batteries
  • Get the most power possible! Up to 81.9kWh while maintaining BMS
    communications!

• Have existing V1 EG4-LL Batteries? Enable expanded communication for existing V1 EG4-LL Battery Banks by using a new V2 EG4-LL Battery as your master battery. This feature will be available with a firmware upgrade that will be released soon.

Warranty

10 year warranty through EG4 electronics

Performance Components

• Reliable Built-In EG4 Smart BMS, Voltage, Current, Temp. and Health Management

• Stress-Free Battery Bank Expansion Capacity

• Cell & Module Voltage Protection

• Short Circuit Protection >250A <0.1mS

• Temperature Protection

• Operating Power Consumption  <25mA

Advanced Configurability

• On-board LCD Screen

• PC Monitoring Software

• Lifetime firmware updates

Downloads

• Spec Sheet
• Manual
• BMS Software
