Description

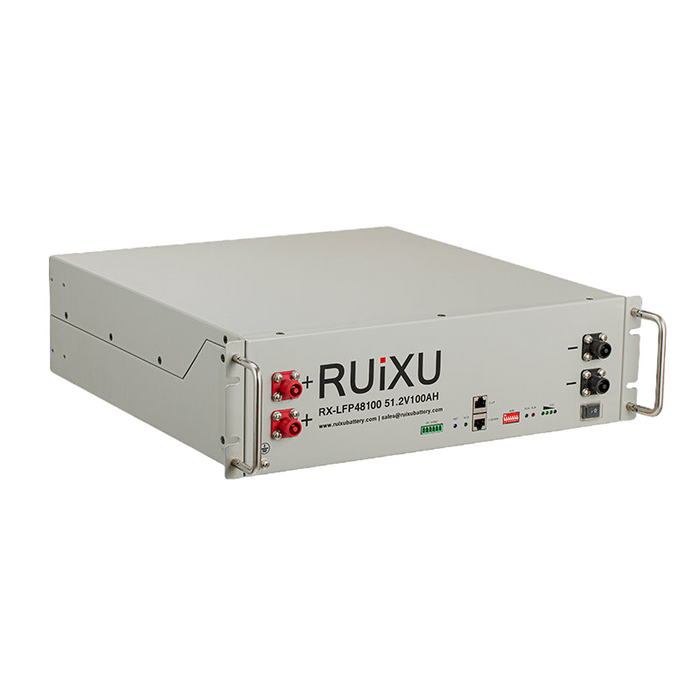

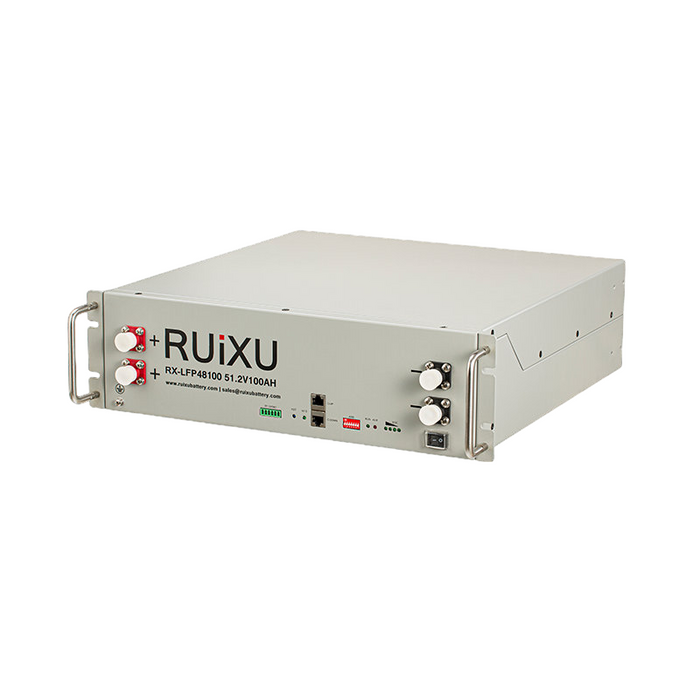

RUiXU RX-LFP48100 Server Rack Battery

Introducing the RUIXU RX-LFP48100, a 19" Rack Mounted 3U Module available at Direct Solar Power. With UL1973 certification and pending UL9540 approval, this module guarantees top-notch safety and reliability standards. Engineered for easy incorporation into your energy storage system, the RX-LFP48100 delivers efficient and reliable performance. Whether for homes or businesses, count on RUIXU for premium lithium battery solutions. Enhance your energy storage configuration with the RUIXU RX-LFP48100 from Direct Solar Power.

What's Included with your RUiXU Server Rack Battery

(1) RUiXU 48V Server Rack battery (RX-LFP48100)
(1) RS485 Communication Cable
(1) Ground Cable
(1) Set of Parallel 4AWG Cables per battery
Lifetime customer support (text, phone, email or live chat)

Note: Assembly rack is required.

Certifications

CE / IEC62619 / UL1973 / UN38.3 / UL9540 Pending

Modular

Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.

Warranty

10 year warranty included.

Inverter Protocol Choosing

Use DIP address to set the RS485 baud rate and inverter protocol choosing

RUiXU RX-LFP48100 Server Rack Battery Specifications

Nominal voltage: 51.2V
Nominal capacity: 100Ah
Nominal energy: 5.12kWh
Usable energy: 4.92kWh
Operating voltage range: 44.8V-56.0V
Charge voltage: 56V
Float voltage: 54.6V
Recommended charge current: 50A
Max. charge current: 70A
Recommended discharge current: 50A
Max. discharge current: 100A
Communication: RS485/CAN
Peak discharge current: 101-119A@5mins | 120-149A@15S
IP rating: IP20
Cycle life: >6000 cycles @90%DOD
Net weight: ~47kg (103.6lb)

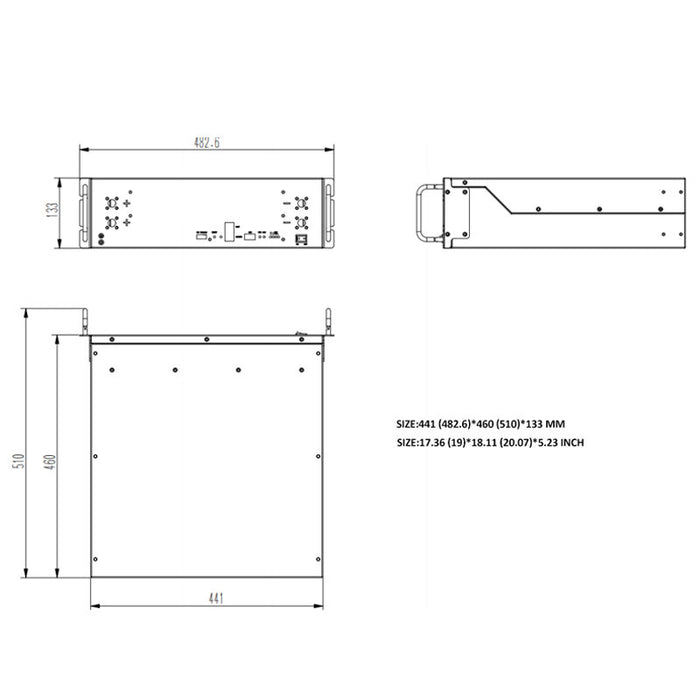

Dimension(W*H*D): 482*133.5*460mm (18.9 5.2*18.1 inch)
Cell type: Lithium-iron phosphate (LiFePO4)
Design life: 15 years
Operation temperature: -10-50 C (14-122°F)
Storage temperature: -10-45°C (14-113°F)
Relative humidity: 5%-90%, No condensation
Install altitude: <4000m
Install location: Indoor
Installation: Wall mounted/Floor mounted/ Stack/ Rack mounted

Documents & Downloads

Specifications
User Manual
Certifications
RuiXUTool Software Operation Instructions
RuiXUTools V1.03
USB to RS485 Driver
