RUiXU Lithi2-16 Lithium Battery 51.2V 314Ah | 16kWh | LiFePO4 Wallmount Energy Storage | 9500 Cycles | UL1973/UL9540 pending | 10-Year Warranty
Questions? Ask an Expert
Buy with confidence. Contact our experts today.
by RUiXU

RUiXU Lithi2-16 Lithium Battery 51.2V 314Ah | 16kWh | LiFePO4 Wallmount Energy Storage | 9500 Cycles | UL1973/UL9540 pending | 10-Year Warranty

$3,399.00 - $3,399.00
$3,399.00
$3,399.00 - $3,399.00
$3,399.00
+ No Sales Tax

Estimated Shipping Widget will be displayed here!
Questions? Ask an Expert
Buy with confidence. Contact our experts today.

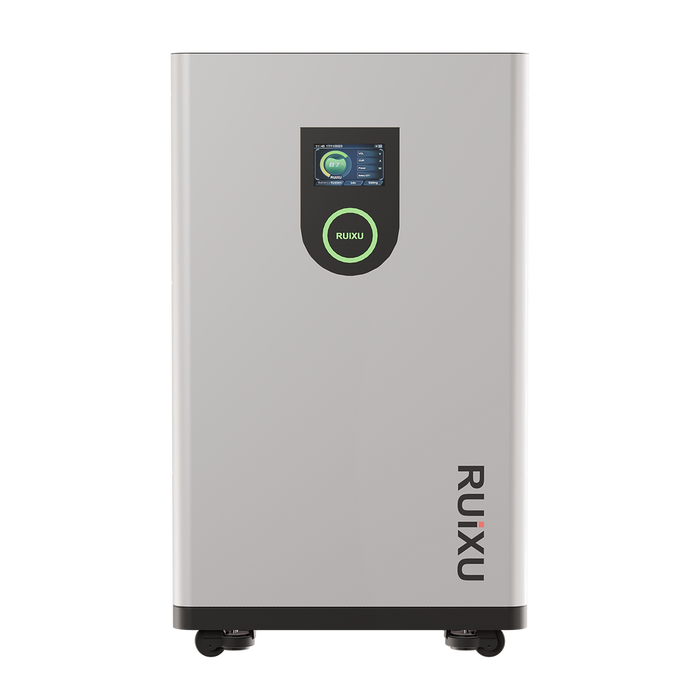

RUiXU Lithi2-16 Wall Mounted Lithium Battery


What's Included with your RUiXU Wall Mounted Battery

  • (1) RUiXU Lithium Battery 51.2V 314Ah (Lithi2-16)
  • (1) RS485 Communication Cable
  • (1) Ground Cable
  • (1) Set of Parallel 4AWG Cables  per battery
  • Lifetime customer support (text, phone, email or live chat)

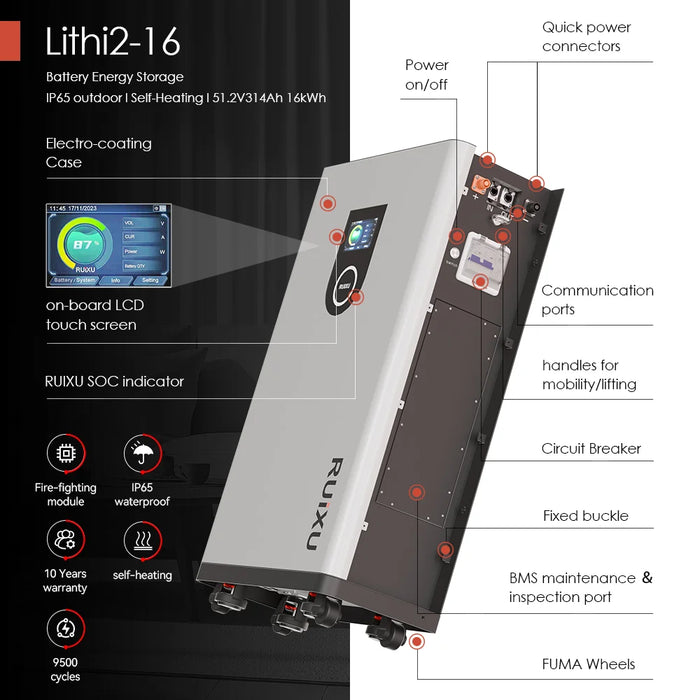

ON-Board LCD Touch Screen

5-inch capacitive touch screen provides battery information and allows easy and intuitive adjustment of battery settings.

Built In Fire Arrestors: with Perfluorohexane Technology

A perfluorohexane module offers fire protection inside the battery pack to both electrical lines and cells.

Quick Connect Plugs

Quick plugs provide 250A (continuous) overcurrent capacity, easy tool-less connection, long-term anti-loosening and heating protection.

Fuma Wheels and Wall Mounted

Four concealed heavy-duty Fuma wheels facilitate movement of the battery without detracting from the elegant design. An anti-tipping mount on the back anchors the battery to the wall.

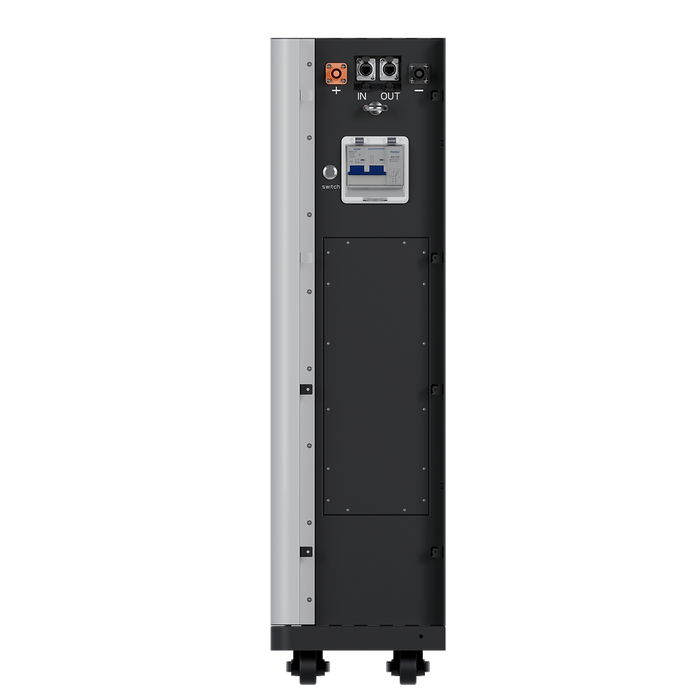

Battery Inspection Port

An inspection port on the side of the battery provides access to the BMS and fuse for ease of maintenance.

All Pole Protection

All-pole, dual protection through fuse (negative terminal) and micro circuit breaker (positive terminal).

Intelligent Cell Balancing

A double equilibrium approach achieves efficient cell balancing by calculating capacity differences between battery cells from charging-process data and by extending the balancing time, improving the efficiency and reliability compared to general passive and active balancing modes.

Self-Heating Feature

Keep your RUiXU at operating temperatures to improve efficiency in cold weather.

Electro-Coating Battery Case for Outdoor Use

Electro-coating (electrophoresis) of the battery enclosure provides excellent rust prevention for outdoor use. The electrophoretic coating process is widely used in the production of automotive body shells

RUiXU Lithi2-16 Specifications

  • Nominal voltage ：51.2V
  • Nominal capacity@0.2C ：314 Ah
  • Min. capacity@0.2C：314 Ah
  • Nominal energy :16.07kWh

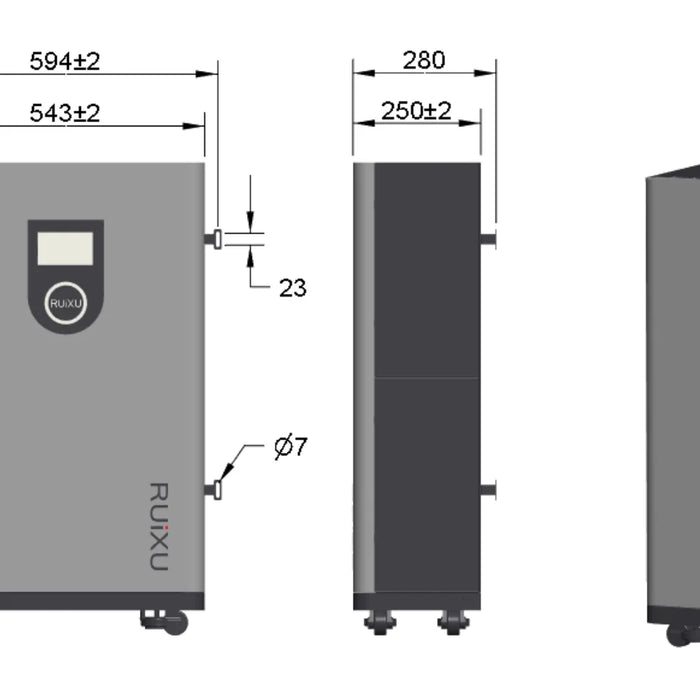

  • Dimensions: 36.3(with wheels) x 21.3 x 10inch
  • Weight: ~145kg （320lb)
  • Cycle life @80% DOD:≥9500 cycles
  • Warranty: 10-Years

Documents & Downloads

Order your RUiXU Lithi2-16 Battery Today!
