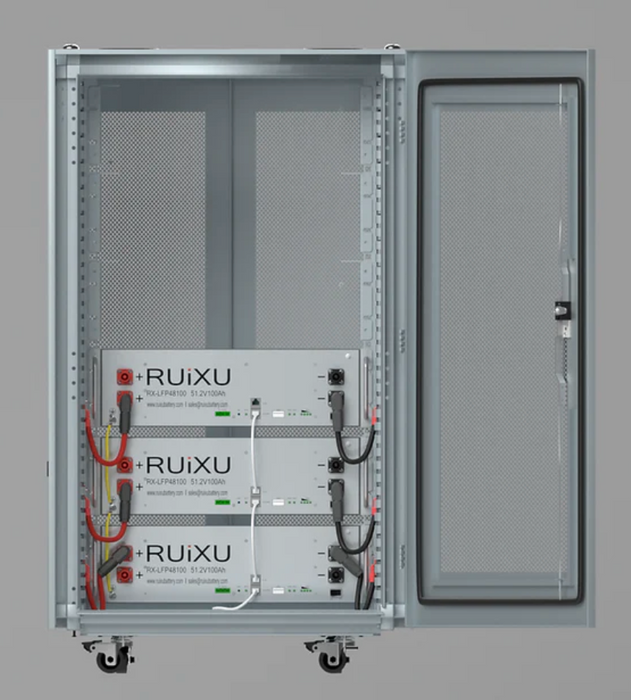

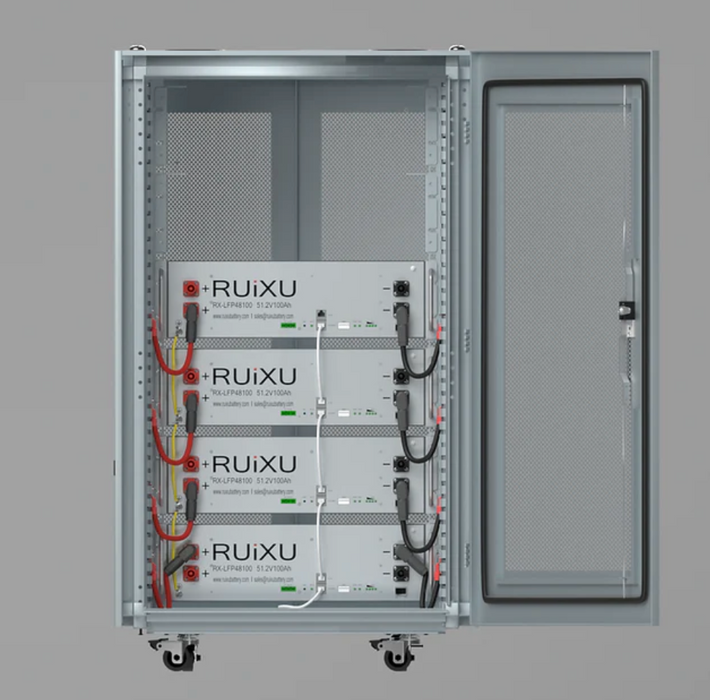

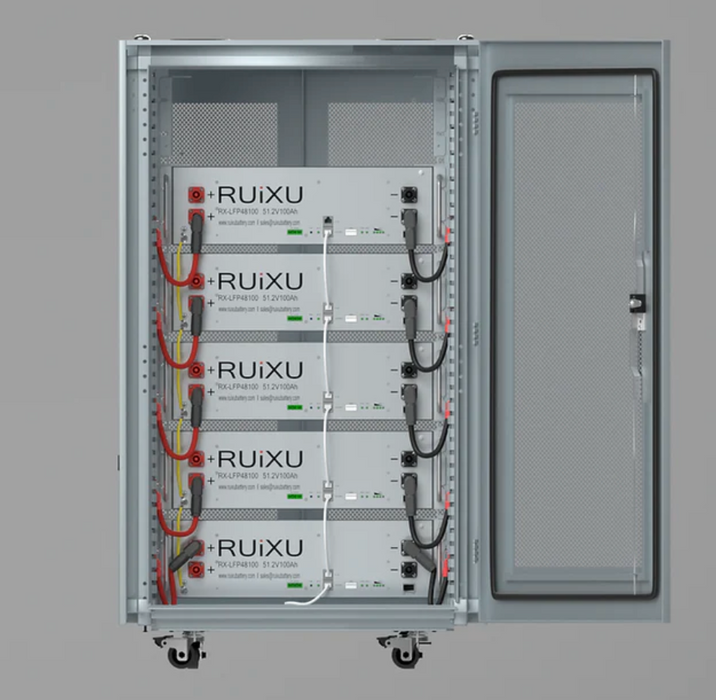

RUiXU RX-LFP48100 Self Heating Lithium Server Rack Battery Kit | 15 kWH, 20 kWH, 25 kWH, 30 kWH

RUiXU RX-LFP48100-H 19" Rack Mounted 3U Battery

Introducing the RUIXU Self-heating RX-LFP48100-H, a 19" Rack Mounted 3U Module available at Direct Solar Power. With UL1973 certification, this module guarantees top-tier safety and reliability standards. Featuring advanced self-heating technology, it delivers superior performance even in adverse weather conditions. Effortlessly integrate this module into your solar energy system for optimal efficiency and dependable operation. Count on RUIXU for high-quality lithium battery solutions. Enhance your energy storage setup with the RUIXU Self-heating RX-LFP48100-H from Direct Solar Power.

What's Included with each separate RUiXU Server Rack Battery

• (1) RS485 Communication Cable
• (1) Ground Cable
• (1) Set of Parallel 4AWG Cables  per battery
• Lifetime customer support (text, phone, live chat or email)

Note: Battery cabinet is sold separately. Click here to view the compatible battery cabinet.

Certifications

CE / IEC62619 / UL1973 / UN38.3 / UL9540 Pending

Modular

Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.

Warranty

10 year warranty included.

Inverter Protocol Choosing

Use DIP address to set the RS485 baud rate and inverter protocol choosing

RUiXU RX-LFP48100-H Server Rack Battery Specifications

• Nominal voltage: 51.2V
• Nominal capacity at 0.2C: 100Ah
• Nominal energy: 5.12kWh
• Usable energy: 4.92kWh
• Operating voltage range:  44.8V-56.0V
• Charge voltage: 56V
• Float voltage: 54.6V
• Recommended charge current: 50A
• Max. charge current: 70A
• Recommended discharge current: 50A
• Max. discharge current: 100A
• Communication: RS485/CAN
• Peak discharge current: 101-119A@5mins | 120-149A@15S
• IP rating: IP20
• Cycle life: >6000 cycles @90%DOD
• Net weight: ~47kg (103.6lb)
• Dimension (W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch
• Cell type: Lithium-iron phosphate (LiFePO4)
• Design life: 15 years
• Operation temperature: -10-50 C (14-122°F)
• Storage temperature: -10-45°C (14-113°F)
• Relative humidity: 5%-90%, No condensation
• Install altitude: <4000m
• Install location: Indoor
• Installation: Wall mounted/Floor mounted/ Stack/ Rack mounted

Documents & Downloads

• Specifications
• User Manual
• Certifications
• RuiXUTool Software Operation Instructions
• RuiXUTools V1.03
• USB to RS485 Driver

Order your RUiXU RX-LFP48100 Battery Today!

Still Have Questions? Speak with an Expert: (848) 600-6420
