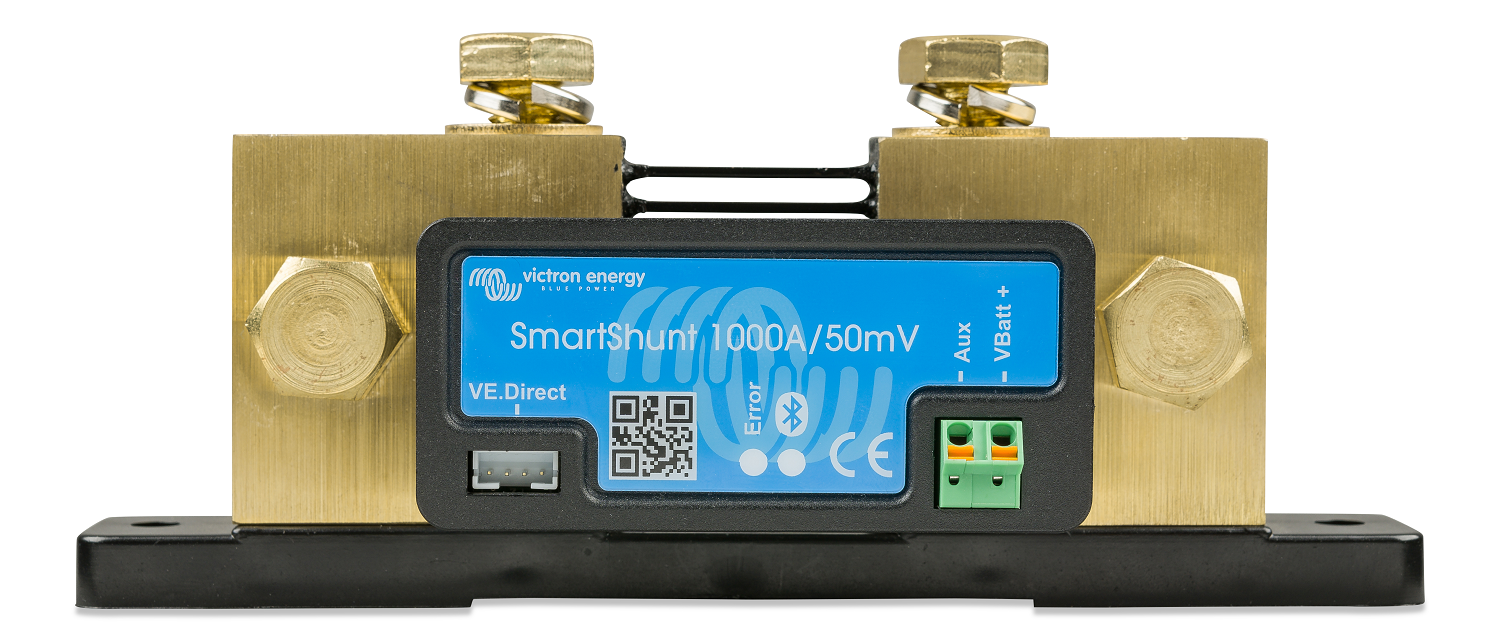

Victron SmartShunt 1000A/50mV, IP21

$132.00 - $132.00
$132.00
From $165.13
$165.13 - $165.13
$165.13
+ No Sales Tax

Estimated Shipping Widget will be displayed here!
Questions? Ask an Expert
Buy with confidence. Contact our experts today.

Victron SmartShunt 1000A/50mV, IP21

The BMV-700 is a high-precision battery monitor designed to track ampere-hours consumed and the state of charge of your battery system. It functions like a fuel gauge, calculating usage through current flow measurements and adjusting for factors like discharge rate, temperature, and battery age. The monitor displays key information such as voltage, current, ampere-hours consumed, state of charge, time-to-go, and power consumption in Watts. The system is easy to set up via the device’s menu or a smartphone using the optional Bluetooth Smart dongle.

Features

  • Battery voltage, current, power, ampere-hours consumed and state of charge
  • Remaining time at the current rate of discharge
  • Programmable visual and audible alarm
  • Programmable relay, to turn off non-critical loads or to run a generator when needed
  • 500 Amp quick connect shunt and connection kit
  • Shunt selection capability up to 10,000 Amps
  • VE.Direct communication port
  • Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
  • Wide input voltage range: 6.5 – 95V
  • High current measurement resolution: 10 mA (0.01A)
  • Low current consumption: 2.9Ah per month (4mA) @12V and 2.2Ah per month (3mA) @ 24V
