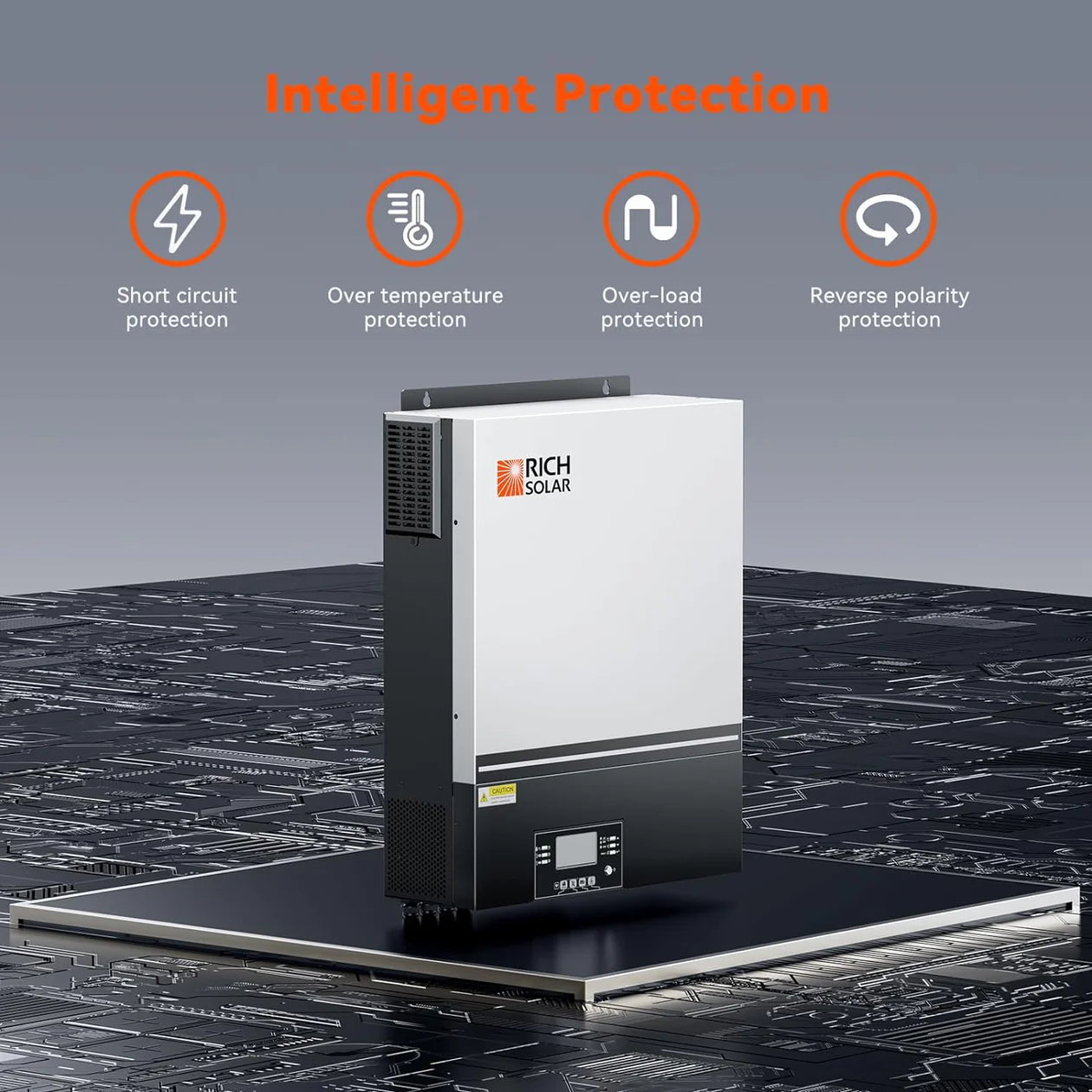

Rich Solar 6500 Watt (6.5KW) 48 Volt Off-Grid Hybrid Solar Inverter as Solar Micro Inverter

How to Install and Maintain Solar Micro Inverters: A Step-by-Step Guide

Are you investing in solar panels for your home, expecting to save on energy costs, only to find out your system isnโ€™t performing as well as it should. Itโ€™s frustrating to discover that one shaded or underperforming panel is dragging down the efficiency of the entire setup.

Thatโ€™s where solar micro inverters come into the game. Instead of relying on a single inverter to manage all your panels, micro inverters allow each panel to work independently. This means even if one panel isnโ€™t performing at its best, the others will still generate power efficiently, maximizing your systemโ€™s overall output.

EG4 3kW Off-Grid Solar Inverter | 3000EHV-48 | 3000W Output | 5000W PV Input | 500 VOC Input

In this guide, Iโ€™ll walk you through how to properly install and maintain solar micro inverters, step by step.

What Are Solar Micro Inverters, and Why Should You Know About?

Think of solar micro inverters as the brains behind each solar panel. Unlike traditional string inverters, which handle multiple panels at once, a micro-inverter is attached to each panel individually.

This allows every panel to operate at its bestโ€”even if one of them is shaded or dirty.

If youโ€™ve got limited roof space or panels facing different directions, microinverters are your best friend. They offer great flexibility and efficiency.

They might cost a little more upfront, but they maximize your energy output. Plus, they make it easier to identify problems since you can monitor each panelโ€™s performance separately.

Solar Micro Inverter Pros and Consย

Roof Top Solar Panel for Solar Micro Inverters

Pros:

One of the biggest benefits of micro inverters is their high efficiency. Since each panel operates independently, the performance of one panel doesn't affect the others. This is a huge advantage in situations where some panels might be shaded or dirty, as the rest of your system will continue producing energy at its full potential. This independent operation also makes it easier to optimize energy production, especially on roofs with different angles or orientations.

Another advantage is the ability to monitor each panel individually. Micro inverters often come with built-in monitoring systems that allow you to track the performance of each panel in real-time. This is incredibly useful for spotting any issues early on, so you can fix problems before they impact your energy savings.

In addition, micro inverters help mitigate the common issue of shading. With traditional string inverters, if one panel is shaded, it can reduce the efficiency of the entire string of panels. But with micro inverters, shading on one panel wonโ€™t drag down the performance of the others, keeping your system more productive overall.

Cons:

However, micro inverters do come with some downsides. For starters, they tend to have a higher upfront cost compared to traditional string inverters. Since each panel needs its own inverter, the overall system cost can add up quickly. This may be a drawback for those looking to keep initial costs low.

Another consideration is the installation process. Because each panel requires its own inverter, the system involves more components, which can make installation more time-consuming and complicated. This could also mean slightly higher installation costs, depending on the complexity of your setup.

Troubleshooting can also be a bit more complex with micro inverters. While the ability to monitor each panel is great, if one inverter fails, youโ€™ll need to pinpoint the exact panel with the issue. This can be more challenging than troubleshooting a single string inverter, which covers all the panels at once.

If you're looking for cheap solar micro inverters, you might find budget-friendly models, but keep in mind that quality matters when it comes to long-term performance.

Step-by-Step Guide to Installing Solar Micro Inverters

The process of Installing solar micro inverters may sound difficult, but trust me, itโ€™s easier than you think if you follow a structured process. The key is preparation and attention to detail. Hereโ€™s a simple, practical step-by-step guide to help you set up your micro inverter solar panels smoothly.

1. Prepare Your Tools and Components

Before diving into installation, itโ€™s essential to have everything you need at hand. Here's a checklist:

  • Solar micro inverter kit (including inverters, cables, and connectors)
  • Solar panels
  • Racking system for mounting panels
  • DC/AC disconnects
  • Wiring tools: screwdrivers, wrenches, pliers
  • Safety equipment: gloves, goggles

Having all these ready will prevent interruptions and make the entire process more efficient.

2. Mount the Solar Micro Inverters on the Racking

Every micro inverter is installed on the racking system underneath each solar panel.

  • Align the inverters with the mounting brackets on the racking.
  • Use screws or mounting clips to secure them tightly.
  • Make sure each inverter is firmly attached to prevent it from loosening over time due to weather conditions.

Pro Tip: Double-check that all the inverters are facing the same direction to make wiring easier.

3. Connect Solar Panels to the Micro Inverters

This step is straightforward since most solar panels and micro invertersย follow a plug-and-play connection system.

  • Take the output connector of each solar panel and plug it into the input side of the microinverter.
  • Ensure the connections click securely into place to avoid electrical issues later.

This setup ensures that every panel converts its power from DC to AC independently, maximizing efficiency even if one panel is shaded or dirty.

4. Wire the Micro Inverters Together

Now itโ€™s time to connect all the inverters using the provided AC cables.

  • Link the microinverters in a series by connecting their output ports using daisy-chain connectors.
  • Leave enough slack in the wiring to account for panel expansion and movement.
  • Secure the cables neatly to the racking to avoid tangling or damage.

At this stage, itโ€™s crucial to ensure you follow the wiring instructions in your solar micro inverter kit.

Aptos MAC-400 | 1:1 Trunk Version Solar Micro Inverter

5. Ground the Inverters and Panels for Safety

Grounding is a vital step to protect your solar system from electrical faults.

  • Connect a grounding wire to each inverter using the ground terminal.
  • Link the grounding wires to your homeโ€™s grounding rod or system.
  • Make sure the connections are tight and secure to prevent safety hazards.

A properly grounded system also reduces the risk of voltage spikes caused by lightning or grid issues.

6. Connect to the Electrical Panel or Battery Backup

Your solar micro inverters need to feed power into your home or a battery storage system.

  • If connecting to the grid: Wire the output of the inverters to your AC disconnect switch and then to your homeโ€™s electrical panel.
  • If connecting a battery backup: Make sure the battery is compatible with the microinverters and follow the inverter manual for wiring instructions.

Adding a solar micro inverter battery backup ensures you can store excess energy and use it at night or during power outages.

7. Test the System and Monitor Performance

Once everything is connected, itโ€™s time to power the system and test if it's running smoothly.

  • Flip the switch on your AC disconnect to energize the system.
  • Use the monitoring software or app included with your solar micro inverter kit to track the performance of each panel.
  • Look for any alerts or errors in the system.

If you encounter issues, like a panel not producing power, troubleshoot the inverter or connections to ensure everything is working properly.

8. Final Check and Inspection

Before wrapping up, inspect the entire setup to ensure itโ€™s safe and efficient.

  • Check that all connections are secure and panels are firmly mounted.
  • Make sure the wiring is organized and free of any kinks or damage.
  • Confirm that the monitoring system is receiving data from all micro inverters.

Completing these checks gives you peace of mind that your solar system is built to last and will operate efficiently.

Pro Tips for a Smooth Installation

  • Label the wiring: Itโ€™s easier to troubleshoot the system later if all cables are labeled properly.
  • Do a dry run: Assemble everything loosely before making the final connections to ensure everything fits.
  • Plan for future expansion: Leave space for additional panels or inverters if you plan to expand your solar array later.

Why Proper Installation Matters

A well-installed solar micro inverter system ensures maximum efficiency and longevity. If an inverter fails, your monitoring app will notify you immediately, and you can replace the faulty unit without disrupting the rest of the system.

Aptos MAC-800R Dual Unit | 2:1 Trunk Version Solar Micro Inverter

In Image: Aptos MAC-800R Dual Unit | 2:1 Trunk Version Solar Micro Inverter

This is one of the key advantages of micro inverter solar panelsโ€”they give you flexibility, reliability, and control over each panel's output.

Adding Battery Backup to Solar Micro Inverters

Many people ask if micro-inverters work with battery storage. The answer is yes! You can easily connect a solar micro inverter battery backup to store excess energy and use it when needed.

This setup is especially useful if you want to rely less on the grid or go off-grid. Just make sure to use compatible inverters and batteries for seamless operation.

If youโ€™re curious about hybrid systems, check out what hybrid solar inverters offer in terms of flexibility and backup.

Maintenance Tips for Solar Micro Inverters

Maintaining solar panels and micro inverters will be a lot easier than it sounds if you follow the below tips, let me tell you the basic tactics that you must follow:

Routine Cleaning: Keep your solar panels clean by hosing off dirt and debris every few months. Clean panels allow better sunlight absorption, helping your micro inverters work efficiently.

Check Connections: Inspect the wiring and connectors regularly. Make sure nothing is loose or damaged. Tight connections help your system stay safe and perform well.

Monitor Performance: Use your monitoring app to track the output of each panel. This helps you spot any issues early, so you can fix problems before they affect your system's performance.

Firmware Updates: Some micro inverters have software that needs occasional updates. Keep the firmware up to date to ensure your system stays efficient.

Get Professional Help: Every few years, have a professional check your system. They can spot any hidden issues and ensure everything is in top shape.

Your Micro Inverter System Awaits!

In this guide, weโ€™ve covered the essential steps for installing and maintaining micro inverter solar panels. From mounting the micro inverters to connecting your solar panels and ensuring everything is wired correctly, itโ€™s clear that setting up a system with the solar micro inverters doesnโ€™t have to be complicated. Weโ€™ve also discussed how to keep your system running efficiently with regular monitoring and maintenance.

The key takeaway is that micro inverters offer greater efficiency and flexibility, especially when dealing with shading or unique energy needs. By choosing the best solar micro inverters for your system, incorporating a battery backup for energy storage, and keeping an eye on performance, you can ensure your solar setup works smoothly for years to come.

If youโ€™re ready to take the next step in your solar journey, micro inverters can be a smart choice for maximizing energy output and reliability. Whether youโ€™re looking to go off-grid, or simply improve efficiency, following these steps will give you a future-proof, high-performing solar energy system thatโ€™s easy to maintain and manage.
