How Does a Solar Inverter Synchronize with Grid? Tips Inside

Ever wonder how solar power blends so smoothly with the grid? That’s where the solar inverter steps in. It doesn’t just convert energy—it actively syncs your solar system with your utility provider.

In this quick guide, we’ll break down how that sync happens and why it matters for your setup.

How does a solar inverter synchronize with the grid?

It matches voltage, frequency, and phase to the grid before safely transferring power.

Key Takeaways

• Solar inverters sync your solar system with the grid by matching voltage, frequency, and phase.

• Modern inverters monitor grid conditions in real-time for safe power export.

• Anti-islanding protection prevents backfeeding during outages.

• Smart inverters enable two-way grid communication and support advanced functions.

• Compliance with standards like IEEE 1547 ensures safety and utility approval.

What Is Grid Synchronization in Solar Systems?

Grid synchronization is the process that allows your solar inverter to match its output with the power coming from the utility grid. It’s how your solar system “speaks the same language” as the grid.

The inverter adjusts the voltage, frequency, and phase of your solar electricity so it aligns perfectly with the grid’s parameters. This ensures seamless power transfer without disruptions.

Without proper synchronization, your solar system could send unstable power to your home or the grid—potentially causing safety issues or system faults.

Most modern inverters do this automatically, checking conditions constantly before feeding energy into the grid.

If the grid goes down, the inverter stops sending power immediately (a safety feature called anti-islanding).

Proper grid synchronization isn’t just a technical detail—it’s a must for safely and efficiently using solar power, especially in hybrid setups or homes with net metering. It also plays a key role in setups where understanding how to wire inverter to battery is crucial for seamless energy flow.

Role of a Solar Inverter in Grid-Tied Systems

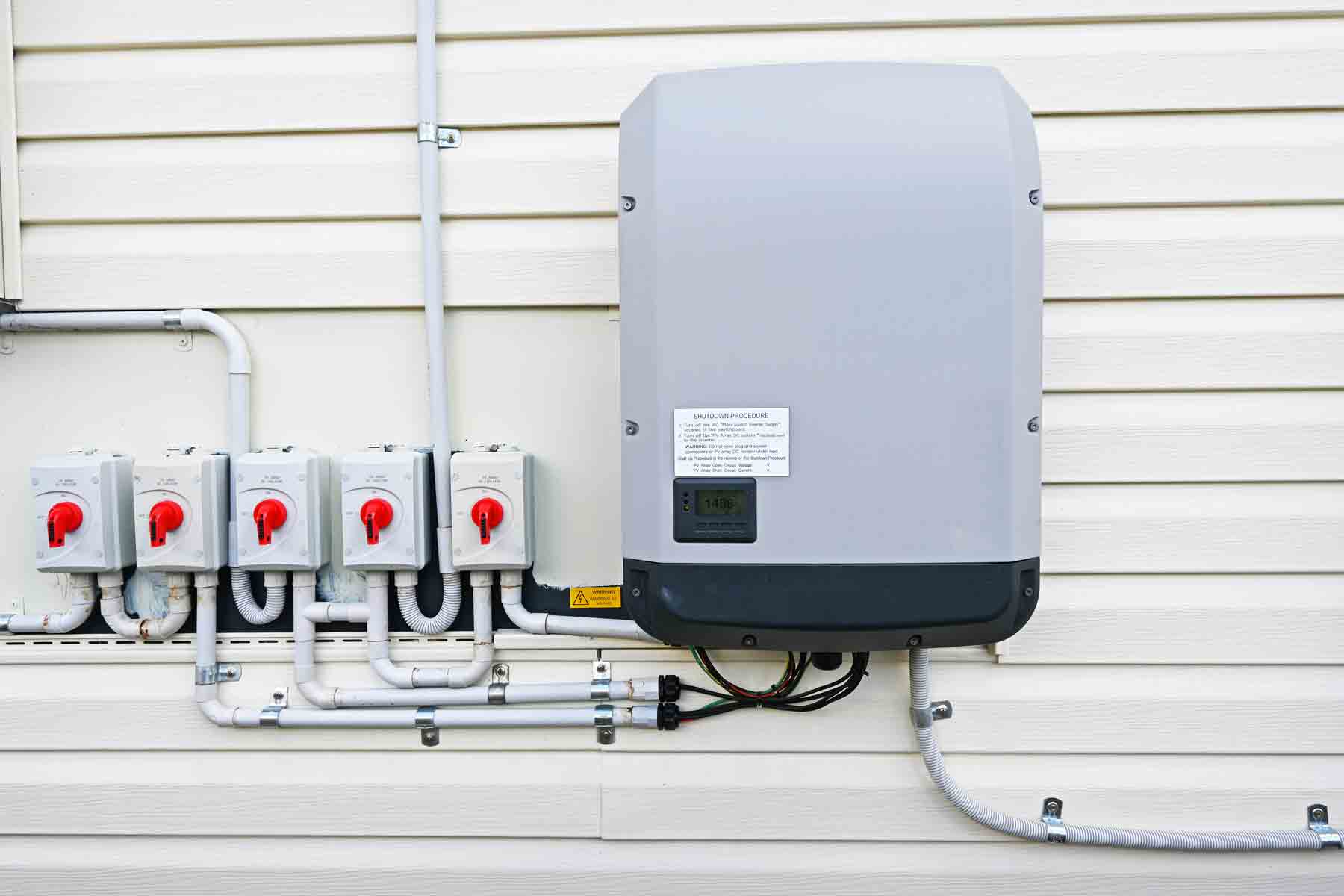

A solar inverter is the heart of any grid-tied solar setup. It converts the DC electricity from your solar panels into AC power your home — and the grid — can actually use.

But it does more than just convert power. The inverter constantly monitors the grid’s voltage and frequency to match it perfectly. That way, your solar system feeds energy into the grid smoothly and safely.

It also keeps your system in check. If the grid goes down, the inverter shuts off automatically — this protects utility workers and prevents backfeeding.

Modern inverters offer smart features too. They can track how much solar energy you're producing, using, or exporting. Some even help manage battery storage if you’ve added that to the system.

In short, the solar inverter makes sure your clean energy works seamlessly with the grid — and helps you get the most out of your solar investment.

Key Parameters for Synchronization

For a solar inverter to sync smoothly with the grid, it has to match a few critical parameters. These include voltage, frequency, phase angle, and waveform.

First, the inverter’s output voltage must closely match the grid’s voltage. If there’s too much difference, it could trigger a safety shutdown or damage equipment.

Next up is frequency. In most regions, the grid runs at either 50Hz or 60Hz. The inverter must align with this frequency to avoid sending unstable power.

Phase angle is another vital piece. The inverter’s AC waveform must be in sync with the grid’s waveform. Even small mismatches can lead to inefficiencies or harmonic issues.

Lastly, waveform quality matters. The inverter must produce a clean sine wave—just like the utility grid. Distorted waveforms can cause flickering lights or strain on appliances.

Modern inverters use phase-locked loop (PLL) circuits and microcontrollers to constantly monitor these parameters. They make real-time adjustments so the solar system feeds power smoothly and safely.

If you're installing solar, make sure your inverter supports grid-tie capabilities and meets local utility standards. It’s the key to safe and efficient energy export.

Types of Solar Inverters Used for Grid Synchronization

When it comes to syncing solar power with the grid, not all inverters are created equal. The type you choose plays a big role in system performance, safety, and compatibility.

• String inverters are the most common. They connect a series of solar panels (a “string”) to a central inverter. They're cost-effective and reliable, but a drop in performance in one panel can affect the whole string.

• Microinverters work differently. Each panel gets its own inverter, so they're ideal for systems with shading issues or complex roof layouts. They also offer better monitoring and efficiency at the panel level.

• Hybrid inverters are perfect if you plan to add battery storage. They can handle both solar and battery inputs, and still stay grid-connected. Great for future-proofing your setup.

• Central inverters are used in large-scale solar farms. They're similar to string inverters but designed for industrial-scale systems, not home use.

• Smart inverters are the new-age solution. They go beyond basic power conversion, offering real-time communication with the grid. These are essential for meeting newer utility standards and ensuring smoother grid interaction.

Choosing the right inverter ensures your system runs efficiently—and stays grid-compliant.

How Synchronization Happens: Step-by-Step Process

Grid synchronization might sound technical, but it follows a logical process. Here's how your solar inverter makes sure it's in tune with the grid—step by step.

1. Detecting the Grid: The inverter constantly monitors the presence of the utility grid. It checks for voltage, frequency, and phase angle using internal sensors.

2. Matching Frequency: Once the grid is detected, the inverter aligns its own frequency to match the grid’s—usually 60 Hz in the U.S. It ensures power flows smoothly without interference.

3. Phase and Voltage Adjustment: The inverter adjusts its output phase to sync with the grid’s wave pattern. At the same time, it fine-tunes the voltage to match the grid within a tight tolerance range.

4. Zero Voltage Difference: To prevent backfeeding or power surges, the inverter ensures there's almost no voltage difference between its output and the grid's. This protects both your system and utility infrastructure.

5. Closing the Connection: Once everything is aligned—frequency, phase, and voltage—the inverter connects to the grid. This is done via an internal relay or switch.

6. Continuous Monitoring: Even after syncing, the inverter keeps monitoring conditions. If anything drifts outside safe limits, it will disconnect automatically and retry synchronization when conditions normalize.

This real-time coordination is what allows solar systems to safely push excess energy back into the grid. It's seamless, smart, and key to reliable solar power.

Anti-Islanding Protection and Its Role

One of the key safety features in solar inverters is anti-islanding protection. It prevents your solar system from continuing to feed power into the grid during an outage.

Why does that matter? If the grid goes down and your inverter keeps sending electricity, it could endanger utility workers fixing the lines. Anti-islanding shuts the inverter off within milliseconds of detecting a grid failure.

This safety mechanism ensures your system doesn’t operate in isolation—also known as “islanding.” Instead, the inverter waits until the grid is back and stable before reconnecting.

Modern inverters use techniques like voltage shifts and frequency changes to sense instability. So, while it keeps your home safe, it also keeps the grid safe.

If you're installing solar, make sure your inverter complies with UL 1741 or IEEE 1547 standards—those cover anti-islanding features. It’s a must-have for both safety and regulatory approval.

Standards & Protocols for Grid Synchronization

To safely sync with the grid, solar inverters must follow strict standards like IEEE 1547 and UL 1741. These ensure the inverter matches grid voltage, frequency, and phase before connecting.

Smart inverters also follow protocols like SunSpec or Modbus for real-time communication with utility systems. This helps prevent issues like backfeeding or voltage spikes.

Following these standards isn’t just about compliance—it protects your equipment and keeps the power supply stable. Always check if your inverter is certified for local utility requirements before installation.

Challenges in Grid Synchronization

Synchronizing with the grid isn’t always smooth sailing. Fluctuating grid voltages and frequency mismatches can throw the inverter off balance.

Poor weather conditions or unstable loads make it harder for the inverter to stay in sync. This can lead to power quality issues or automatic disconnection.

To avoid this, use a high-quality inverter with advanced grid-support features. Regular maintenance and software updates also help keep everything aligned and stable.

Smart Inverters and Grid Support Functions

Smart inverters do more than just convert DC to AC—they actively support the grid. They can regulate voltage, manage reactive power, and ride through minor grid disturbances without shutting off.

These advanced functions help maintain a stable power supply, especially during times of high solar output. Utilities often require smart inverters to communicate with the grid and respond to real-time signals.

This two-way interaction keeps the grid balanced and reliable. If you're installing solar, choosing a smart inverter ensures your system plays nice with the grid—and stays future-ready.

Frequently Asked Questions

1. Can a solar inverter work without grid connection?

Yes, but only if it’s a hybrid or off-grid inverter. Standard grid-tied inverters need the grid to function.

2. What happens during a power outage?

Most grid-tied systems shut off for safety. Hybrid systems with batteries can keep running.

3. How long does synchronization take?

Typically just a few seconds. The inverter constantly monitors and matches grid voltage and frequency.

Conclusion

A solar inverter syncing with the grid isn’t magic—it’s smart tech doing real-time work. It constantly adjusts voltage, frequency, and phase to match what the grid needs.

Understanding this process helps you choose the right inverter and avoid power issues. If you're planning a grid-tied solar system, work with a licensed installer who knows the ins and outs of inverter sync.

That way, your system runs smoothly, stays safe, and delivers the clean energy you’re counting on.
